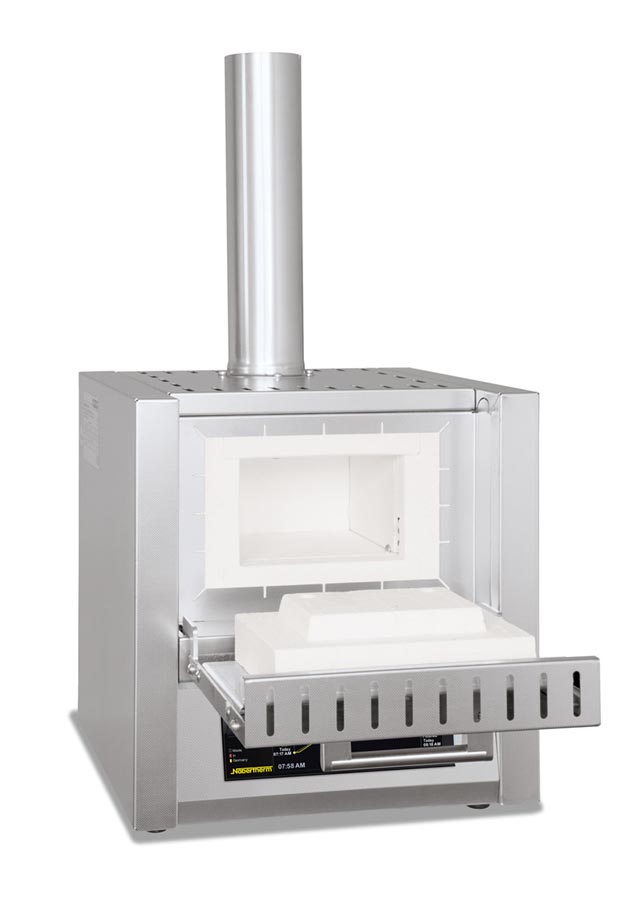

Nabertherm LV9/11 B510 208V Ashing Furnace, 1,100°C, C550 Controller

The Nabertherm LV9/11 B510 208V ashing furnace has a 1,100°C maximum temperature with a 9 Liter capacity and comes with the B510 (5 programs, 4 steps) controller and a flap opening door. Ashing furnace LV ../11 is designed especially for ashing processes to 1050°C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

• Tmax 1100°C
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/? 10°C in the defined empty work area (from 550°C) see page 73
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• Flap door (LV) which can be used as work platform
• 1 year warranty
