SKU
LVT15/11 C550 240V
  • $10,478.00
  • $12,090.00 You Save 13.33%

Description

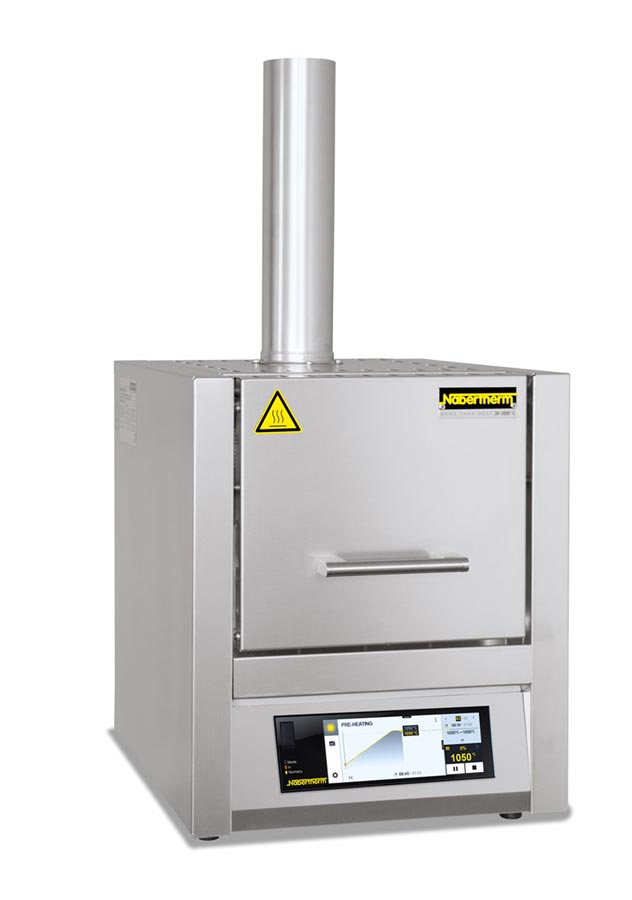

The Nabertherm LVT15/11 C550 240V ashing furnace has a 1,100°C maximum temperature with a 15 Liter capacity and comes with the C550 (10 programs, 20 steps) controller and a vertical opening door. Ashing furnace LV ../11 is designed especially for ashing processes to 1050°C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

  • Tmax 1100°C
  • Heating from two sides

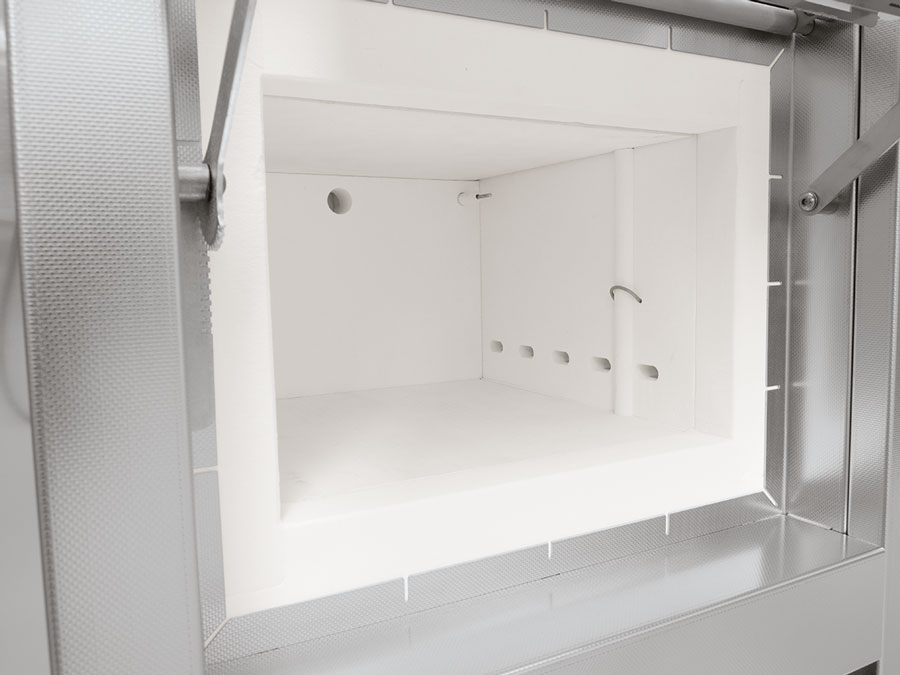

  • Ceramic heating plates with integral heating element which is safeguarded, and easy to replace

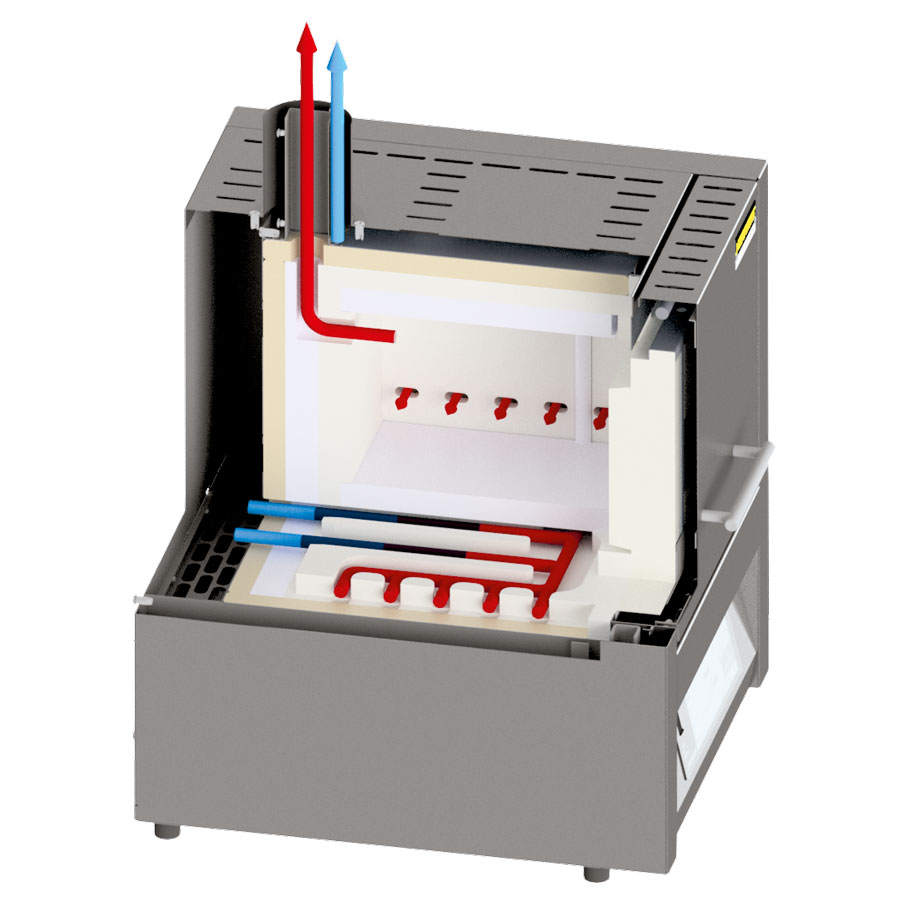

  • Air exchange of more than 6 times per minute
  • Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/? 10°C in the defined empty work area (from 550°C) see page 73
  • Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN

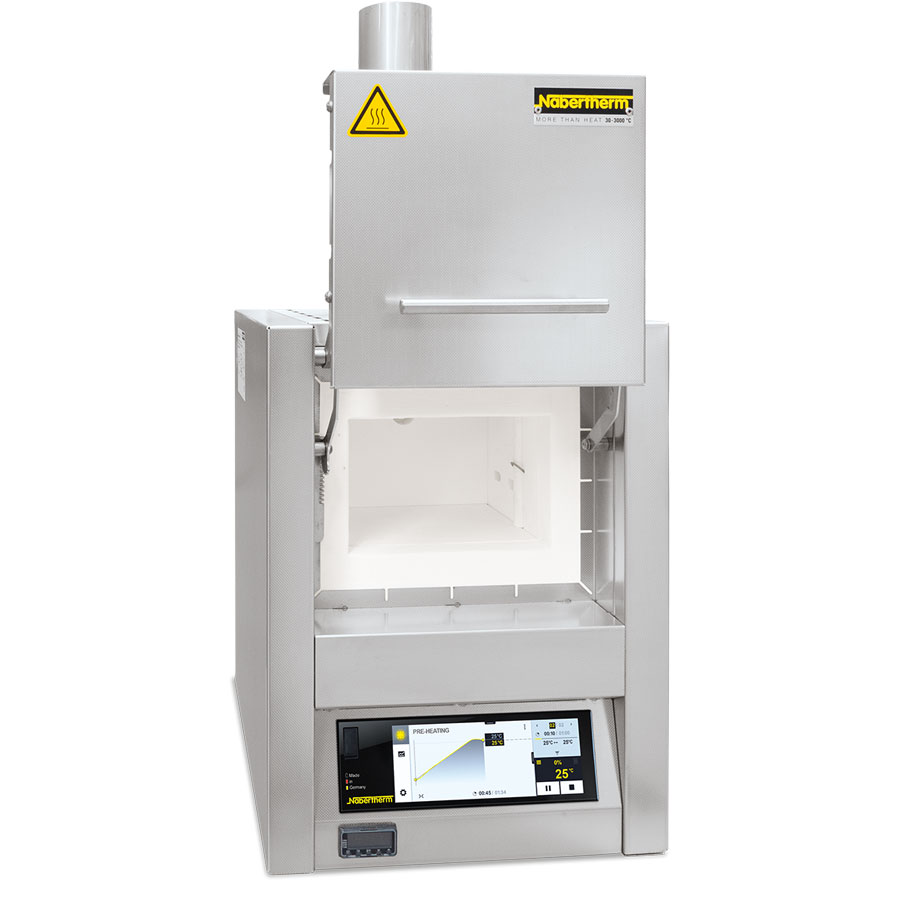

  • Lift door (LVT) with hot surface facing away from the operator
  • 1 year warranty
Technical Specifications:
Maximum Temperature1,100°C
Volume15 Liter (0.53 cu ft)
Chamber Dimensions (W x D x H)230 x 340 x 170 mm
9.1 x 13.4 x 6.7 inches
Outer Dimensions (W x D x H)415 x 590 x 865 mm
16.3 x 23.2 x 34.1 inches
Max. Weight of hydrocarbons in g25 grams
Max. evaporation rate g/min0.3 g/min
Max. connected Load in kW3.2 kW
Electrical Connection240 Volt, 50/60 Hz, 1-phase
Weight80 kg ()
Heating time80 minutes
Door TypeVertical lifting door
ControllerC550 10 programs of 20 segments
