SKU
AX12001/E
  • $2,678.35
  • $3,151.00 You Save 30.47%

Description

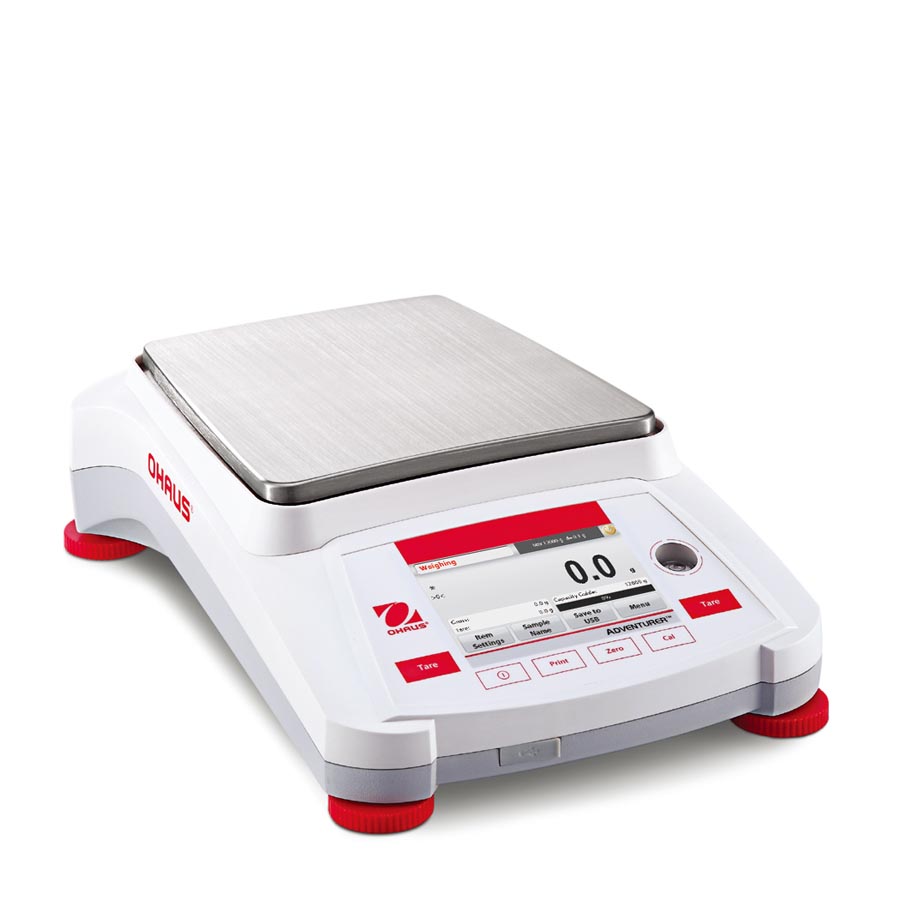

The Ohaus AX12001/E Adventurer high capacity precision balance has a capacity of 12 kilograms (external cal.) with a readability of 0.1 grams and comes with a 6.9 x 7.7 inch pan size. Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

  • Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results - This trio of characteristics ensures the most important aspects of routine laboratory weighing are covered: accurate results you can count on extremely quickly.
  • Color Touchscreen & Connectivity Options Power a Modern Weighing Experience - The wide viewing angle color touchscreen provides quick access to all of Adventurer’s applications, while dual USB ports with GLP/GMP tracking capabilities assist in the monitoring and reporting of data.
  • Space-saving Draftshield Improves User Experience and Accessibility - The two piece, top-mounted draftshield doors open wide on both sides, providing ample room for sample placement, and also reduce the footprint of the draftshield in the rear of the balance when open.
  • Transfer data directly to Microsoft Office applications - The Adventurer comes standard with software to enable direct data transmission to Microsoft Office programs, no expensive software needed!
  • 2 year warranty
Technical Specifications:
Capacity12 kg
Readability0.1 g
Pan Size6.9 x 7.7 inches / 175 x 195 mm
Repeatability (sd.), <e;5% of Full Load0.08 g
Repeatability (sd.), <e;5% of Full Load to Full Range0.1 g
Linearity Deviation, Typical±0.06 g
Linearity Deviation±0.2 g
Stabilization Time<e;1.5 seconds
Sensitivity Drift (ppm/°C)5
Min-Weight (Typical) (g) (USP, K=2, U=0.10%)160 g
Min-Weight (Optimal) (g) (USP, K=2, U=0.10%, SRP?0.41d)82 g
Weighing Unitsgram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Applicationsweighing, parts counting, percent weighing, check weighing, dynamic weighing, formulation, density determination, totalization, display hold
CalibrationExternal calibration
Tare RangeTo capacity by subtraction
Power RequirementsAC Adapter Input: 100-240 VAC 0.3A 50-60Hz, Adapter Output: 12 VDC 0.84A
Display TypeFull-Color Touchscreen WQVGA Graphic LCD
Display Size4.3 inches / 109 mm (diagonal)
Base Housing (WxHxD)13.93 x 13.39 x 9.05 inches / 354 x 340 x 230 mm
Communication InterfacesRS232, USB Device, USB Host
Temperature Range50°F to 86°F / 10°C to 30°C
Humidity RangeMaximum relative humidity 80% for temperatures up to 86°F/30°C
Storage Conditions14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing
Net Weight12.8 lbs / 5.8 kg
Shipping Dimensions20 x 15.4 x 11.9 inches / 557 x 392 x 301 mm
Shipping Weight18.8 lbs / 8.5 kg
