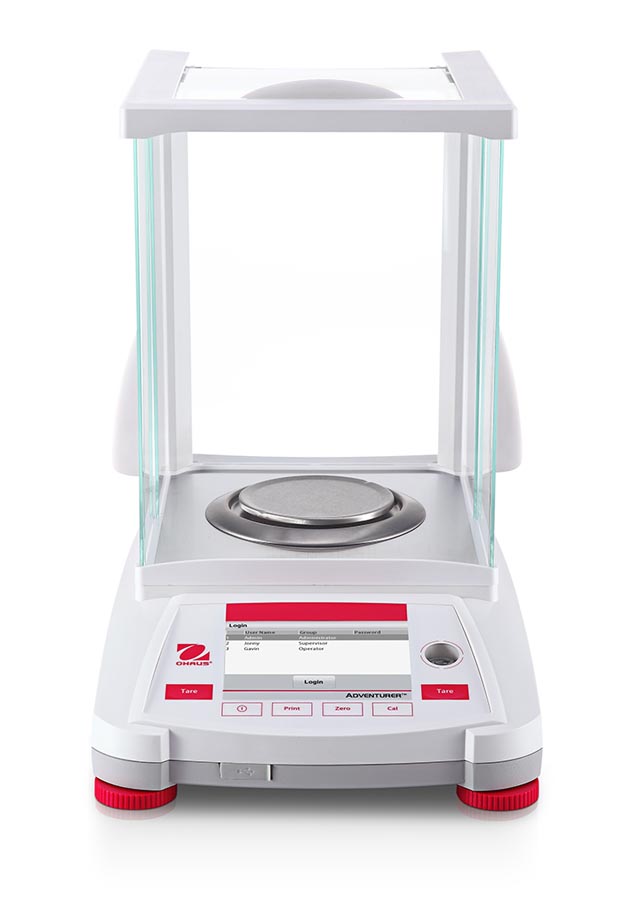

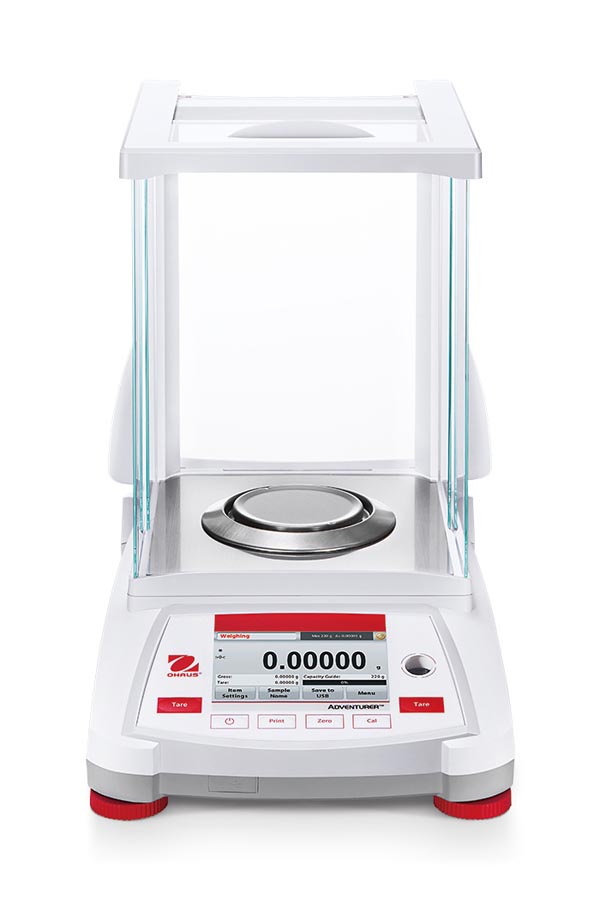

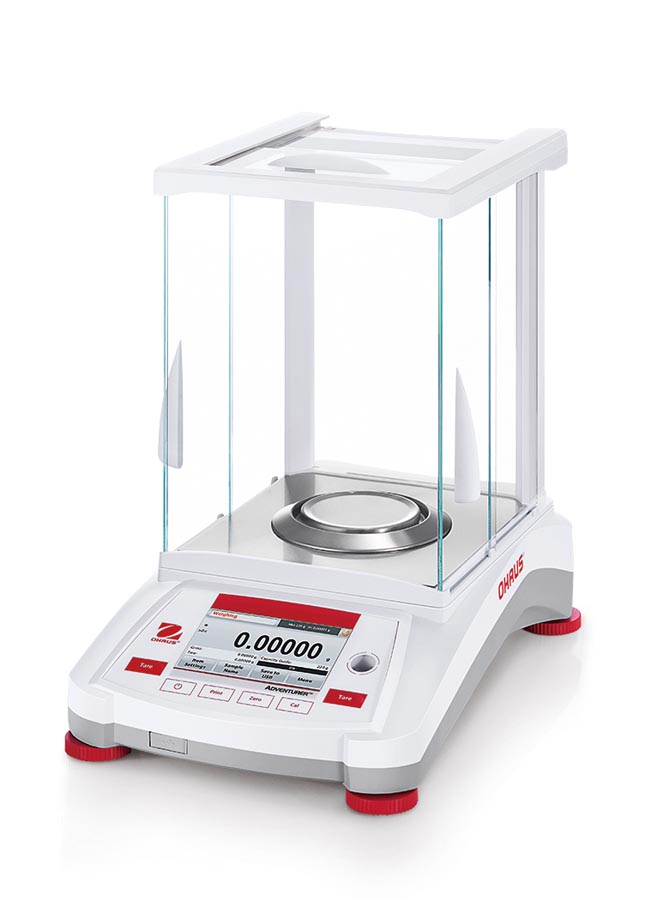

The Ohaus AX125D Adventurer semi-micro balance has a capacity of 82/120 grams with a readability of 0.01/0.1 milligrams and comes with a 3.1 inch diameter pan size. Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Capacity | 82 g / 120 g |
---|---|
Readability | 0.01 mg / 0.1 mg |
Pan Size | Ø 3.1" / 80 mm |
Repeatability (sd.), <e;5% of Full Load | 0.00001 g |
Repeatability (sd.), <e;5% of Full Load to Fine Range Max | 0.00002 g |
Repeatability (sd.), <e;5% of Full Load to Full Range | 0.00002 g |
Linearity Deviation, Typical | ±0.00006 g |
Linearity Deviation | ±0.0001 g |
Stabilization Time | <e;8 seconds |
Sensitivity Drift (ppm/°C) | 2 |
Min-Weight (Typical) (g) (USP, K=2, U=0.10%) | 20 mg |
Min-Weight (Optimal) (g) (USP, K=2, U=0.10%, SRP?0.41d) | 8.2 mg |
Weighing Units | gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1) |

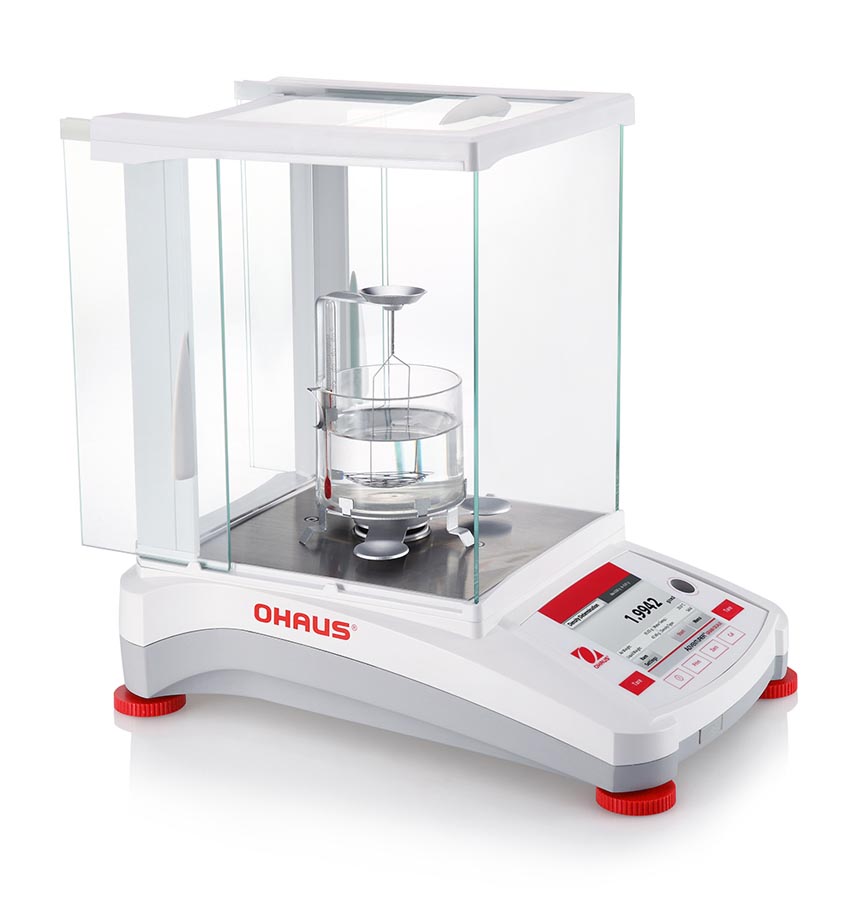

Applications | weighing, parts counting, percent weighing, check weighing, dynamic weighing, formulation, density determination, totalization, display hold |
Calibration | AutoCal™ internal calibration |
Tare Range | To capacity by subtraction |
Power Requirements | AC Adapter Input: 100-240 VAC 0.3A 50-60Hz, Adapter Output: 12 VDC 0.84A |
Display Type | Full-Color Touchscreen WQVGA Graphic LCD |
Display Size | 4.3 inches / 109 mm (diagonal) |
Base Housing (WxHxD) | 13.93 x 13.39 x 9.05 inches / 354 x 340 x 230 mm |
Communication Interfaces | RS232, USB Device, USB Host |
Temperature Range | 50°F to 86°F / 10°C to 30°C |
Humidity Range | Maximum relative humidity 80% for temperatures up to 86°F/30°C |
Storage Conditions | 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing |
Net Weight | 11.3 lbs / 5.1 kg |
Shipping Dimensions | 20.0 x 15.4 x 20.9 inches / 507 x 387 x 531 mm |
Shipping Weight | 17.2 lbs / 7.8 kg |
