SKU
D31P500TX
  • $1,349.00
  • $2,070.00 You Save 34.83%

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

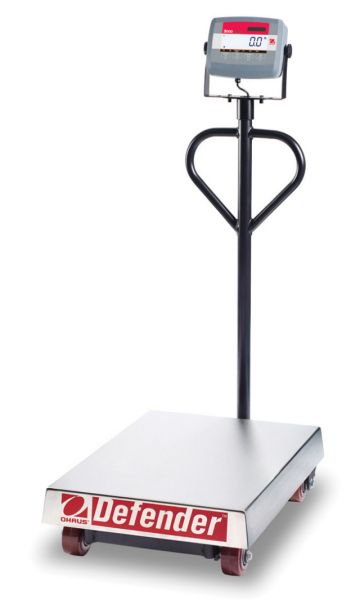

The Ohaus Defender D31P500TX wheeled bench scale has a total capacity of 1,000 lbs with a readability of 0.2 lb (0.5 lb NTEP readability). The high quality bench scales comes with a wheeled base which make them perfect for shipping departments and places where mobile weighing is required. These units are NTEP and Measurement Canada certified.

  • Two capacities: 500 lbs (250 kg) and 1,000 lbs (500 kg) with 20 x 28 in (51 x 71 cm) stainless steel pan
  • Painted steel handle-bar column and polyurethane wheels with quick-lock/unlock brake mechanism
  • 1:5,000 default resolution
  • 1:2,500 NTEP certified/Measurement Canada approved Legal-for-Trade resolution
  • Indicator features high-impact ABS plastic housing with painted steel adjustable viewing bracket
  • 1 in (25 mm) high LCD display with high-contrast backlight
  • Multiple weighing units: lb, oz, lb-oz, kg, g
  • Parts counting mode with selectable sample sizes, auto-retention of last sample size, and reference display of APW
  • Built-in bi-directional RS232C for printing or connection to PC
  • Power via AC adapter or 120-hour internal rechargeable lead acid battery
  • 1 year manufacturers Warranty
Technical Specifications:
Capacity 1,000 lbs / 454 kg
Readability 0.2 lb / 0.1kg
Pan Size 20" X 28"
Certified Readability 0.5 lb
Pan Dimensions (W x D) 20 x 28 in / 508 x 710 mm
Base Construction 304 stainless steel pan with painted steel frame, polyurethane wheels with locking mechanism, external level indicator
Column 40.5 in (1,030 mm), fixed height tubular painted steel with handle bar
Safe Overload Capacity 150% of rated capacity
Load Cell 350 Ω, IP67 aluminum, 2mV/V, 5-15V DC/AC
Indicator T31P indicator with ABS plastic housing and painted carbon steel U-mount bracket with angle adjustment knobs
Weight Display 1 in (25 mm) high, 6-digit, 7-segment LCD with high-contrast white LED backlight
Weighing Units lb, oz, lb-oz, kg, g
Extra Functions/Modes Parts Counting (min APW 1d)
Keyboard 4 function mechanical switches, raised with positive feedback
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3 divisions
Zeroing Range 2% or 100% of capacity
Span Calibration 5 lb/kg to 100% of capacity
Interface Bi-directional RS232
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Power 9-12 VDC, 0.5A, AC adapter with internal rechargeable lead acid battery (100-hour typical operation on full charge)
Net Weight 88 lb / 40 kg
Shipping Dimensions (W x D x H) 30.7 x 46.1 x 10.6 in / 780 x 1170 x 270 mm
Shipping Weight 101 lb / 46 kg
