Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

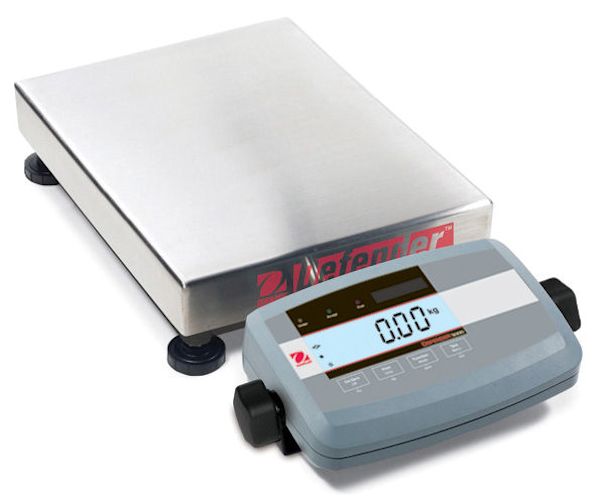

The OHAUS Defender™ 5000 Low-Profile Series is a feature-rich line of bench scales, combining an ABS plastic T51P indicator with painted steel bases. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 Low-Profile offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 Low-Profile can meet the needs of demanding industrial operations.

  • 1 Year Manufacturer's Warranty
  • Painted steel base with ABS indicator
  • Quick display of results using large LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode using quick key press
  • Easy to operate with 4-key membrane keypad with raised tactile keys
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold
  • Internal power supply with universal line cord or 6 "C" batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time
  • Base and indicator connected using quick connect plug
  • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422
Technical Specifications:
Capacity300lbs / 150kg
Readability0.05lb / 0.02kg
Pan Size16.5 x 21.7" / 42 x 55 cm
Maximum Displayed Resolution1:7,500
Indicator ModelT51P
ConstructionStainless steel indicator, removable weighing platform, painted steel column and base construction, aluminum loadcell
Safe Overload Capacity150% of maximum capacity
ProtectionDry use for scale, IP67 for loadcell
Weighing Unitslb, oz, lb:oz, kg, g, custom unit
ModesStatic Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold
Display1 in / 25 mm high 6-digit, 7-segment bright white backlit LCD
Keyboard4-button membrane switch
Stabilization TimeWithin 2 seconds
Auto-zero TrackingOff, 0.5, 1 or 3 d
Zeroing Range2% or 100% of capacity
CalibrationSpan: 1kg or 1lb to 100% of capacity / 3-point linearity (0 - 50% - 100% fixed)
Power100-240 VAC / 50-60Hz internal universal power supply
InterfaceRS232 and external input
Operating Temperature Range14°F to 104°F / -10°C to 40°C
Scale Dimensions (W x H1 x D1 x D2)16.5 x 4.9 x 21.7 x 30.5" / 420 x 125 x 550 x 775 mm
Net Weight58.2 lbs / 26.4 kg
