Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

The OHAUS Defender™ 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.

  • 1 Year Manufacturer's Warranty
  • Painted steel base with ABS indicator
  • 5,000-7,500d default resolution
  • Quick display of results using large dual line LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode using quick key press
  • Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
  • 255 item Library function
  • Internal power supply with universal line cord or 6 "C" batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input
  • Base and indicator connected using quick connect plug
  • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422
Technical Specifications:
Capacity 60 lbs / 30 kg
Readability 0.01 lb / 0.005 kg
Pan Size 12 x 14" / 30.5 x 35.5 cm
Column Height 13.8" / 350 mm
Maximum Displayed Resolution 1:6000

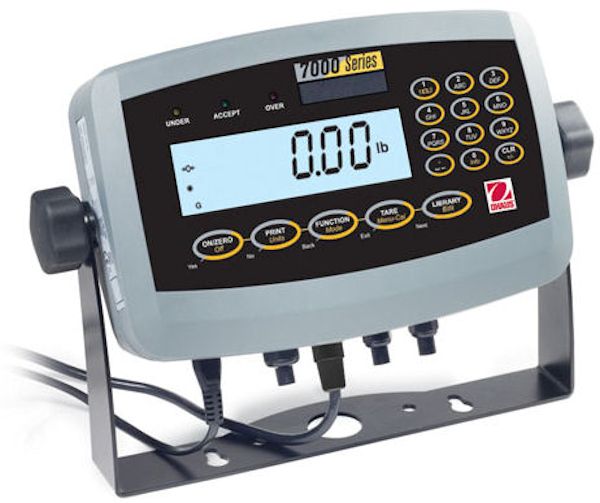

Indicator Model T71P
Construction ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum loadcell
Safe Overload Capacity 150% of maximum capacity
Protection Dry use for indicator, IP67 loadcell
Weighing Units lb, oz, lb:oz, kg, g, custom unit
Modes Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library
Display 1" / 25 mm high 6-digit, 7-segment bright white backlit LCD
Keyboard Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Span: 1 kg or 1 lb to 100% of capacity / Linearity: 3 or 5 point
Power 100-240 VAC / 50-60Hz internal universal power supply / 6 "C" cell batteries (not supplied) with 80 hour life
Interface RS232 and external input
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Shipping Dimensions (L x W x H) 19.3 x 16.1 x 17.3" / 490 x 410 x 440 mm
Net Weight 25.3 lbs / 11.5 kg
Shipping Weight 30.2 lbs / 13.7 kg
