SKU
EX35001
  • $5,201.40
  • $8,048.00 You Save 35.37%

Description

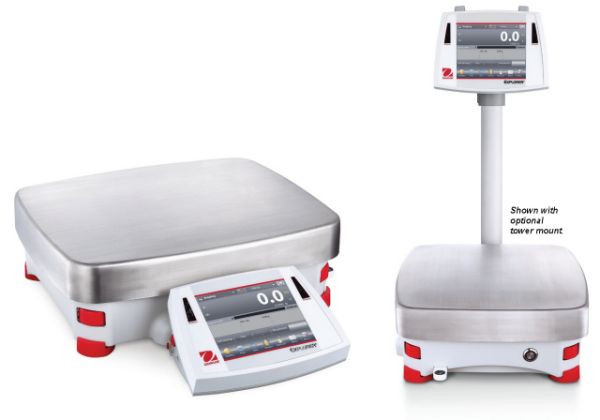

The Ohaus Explorer® EX35001 high capcity precision balance has a capacity of 35kg and a readability of 0.1g. The Explorer series now includes three high-capacity precision models with capacities up to 35 kg. Explorer high-capacity balances offer the same intuitive features, such as AutoCal and a 1 second stabilization time, with additional functions and attributes to support higher capacity weighing applications.

  • Modular Design
  • 5.7" Color VGA Touch Screen Optimizes Viewing and Menu Navigation
  • Two Sensors on Display Offer Hands-Free Operation
  • Display can be Separated from the Base up to 1.5 metes. 9 Meter Cable is also available.
  • Superior protection in rugged or unstable environments
  • With Die-cast Metal Base, Stainless Steel Pan and thick metal housing the Explorer High Capacity is built to withstand Daily Wear and Tear
  • 2-D Protection Prevents Shock and Damage Associated with Movement and Forces Applied to the Balance
  • IP54 Protection Guards Balance and Weighing Cell from Damage by Dry Particles, Humidity and Accidental Spills/Splashes.
  • Optional Adjustable Rolling Feet Provide Assistance in Easily Moving the Balance
  • Optional Rechargeable Battery Option Provedes 10 Hours of Operation away from a Power Source
  • 1 Year Warranty
Technical Specifications:
Capacity 35kg
Readability 0.1g
Pan Size 14.8"x12.24" / 377x311mm
Repeatability std ± 0.1g
Linearity ± 0.2g
Stabilization Time 1 sec
Sensitivity Draft (PPM/°C) 3
Weighing Applications Weighing, % Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential weighing, Density Determination, Peak Hold Ingredient Costing SQC Functions
Weighing Units g,kg,ct,gn,lb,oz,ozt,N,dwt,hkt,sgt,twt,mom,tical,msg,tola,Custom Unit1, Custom Unit 2, Custom Unit 3
Pan Size 14.8"x12.25" / 377 x 311mm
Calibration AutoCal Internal Calibration
Tare Range To capacity by subtraction
Power Requirement 24VDC, 0.63A, 15W
Display Type Full color VGA graphic display, 4 wire resistive touch screen
Display Size 5.7" / 145 mm (diagonal)
Display Housing (WxHxD) 7.7"x3.5"x6.1" / 195 x 90 x 154mm
Base Housing (WxHxD) 14.8"x4.7"x17.4" / 377 x 120 x 443mm
Communication Std RS232, USB -- Optional Ethernet, 2nd RS232
Operating Temperature Range 10 - 30 °C
Operating Humidity Range 15 to 80% @ 30 °C, decreasing linearly to 50% @ 40 °C, non-condensing
Storage Conditions -10 to 60 °C at 10% to 90% RH, non condensing
Scale Weight 10kg / 22.1 lb
Scale Dimensions (WxHxD) 377x120x311mm / 14.8"x4.7"x17.4"
Shipping Weight 27.6 lbs
Shipping Dimensions 26"x21"x13"
