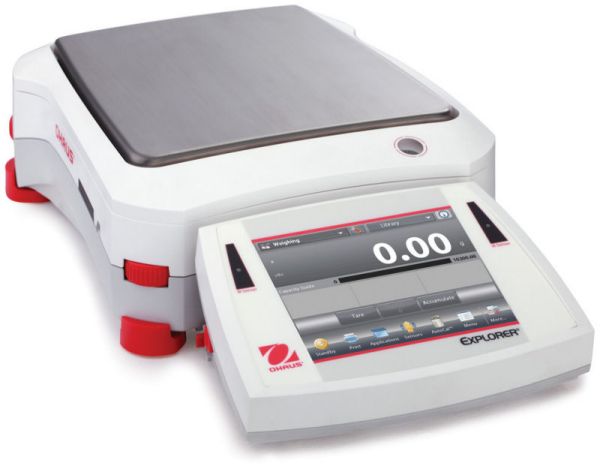

Completely re-imagined from the ground up, the OHAUS Explorer® rises to a whole new level. Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. Featuring SmarText™ 2.0, OHAUS' easy-to-use graphical software offering 14 applications, QWERTY and numeric keypads, and below-minimum weight indication. Explorer's draftshield provides ample access and visibility to the weighing chamber and features antistatic coated glass. Explorer features four touchless sensors for hands-free operation of print, calibration, tare, and other selectable functions. AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily. Explorer is the industry's most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use. Explorer's modular design features a color touch display that can be separated from the weighing base.
Capacity | 6,200 g (external cal) |
---|---|
Readability | 0.1 g |
Pan Size | 7.5 x 7.9" / 190 x 200 mm |
Repeatability | ±0.1g |
Linearity | ±0.1g |
Stabilization Time | ≤1 sec |
Calibration | External Calibration |
Weighing Units | Gram, Milligram, Kilogram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Grain, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, 3 Custom Units |
Application Modes | Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC |
Communication | RS232, USB |
Display Type | Full-color VGA graphic display, 4-wire resistive touch screen |
Display Size | 5.7 in / 145 mm (diagonal) |
Display Housing Dimensions (WxHxD) | 7.7 x 3.5 x 6.0 in / 195 x 90 x 154 mm |
Base Housing Dimensions (WxHxD) | 9.1 x 3.9 x 15.5 in / 230 x 98 x 393 mm |
Leveling Adjustment | Front-mounted level bubble with illumination / QuadraStance adjustable leveling feet |
Tare Range | Full capacity by subtraction |
Operating Temperature Range | 50°F (10°C) to 86°F (30°C) |
Operating Humidity Range | 15% to 80% at 87.8°F (31°C) |
Storage Conditions | -14°F (-10°C) to 140°F (60°C) at 10% to 90% relative humidity, non-condensing |
Power Requirements | AC adapter input: 100-240 VAC 0.6A 50-60 Hz |
Shipping Dimensions | 21 x 15 x 12 in / 55 x 38.5 x 29.1 cm |
Net Weight | 11 lb / 5 kg |
Shipping Weight | 16.3 lb / 7.4 kg |
