Ohaus E-G52HS10C-K1 Digital Hotplate Stirrer Kit, 10 x 10 inches

Email a Friend Add to Favorites
SKU
E-G52HS10C-K1
  • $1,000.60
  • $1,270.00 You Save 21.21%
Estimate Shipping

Description

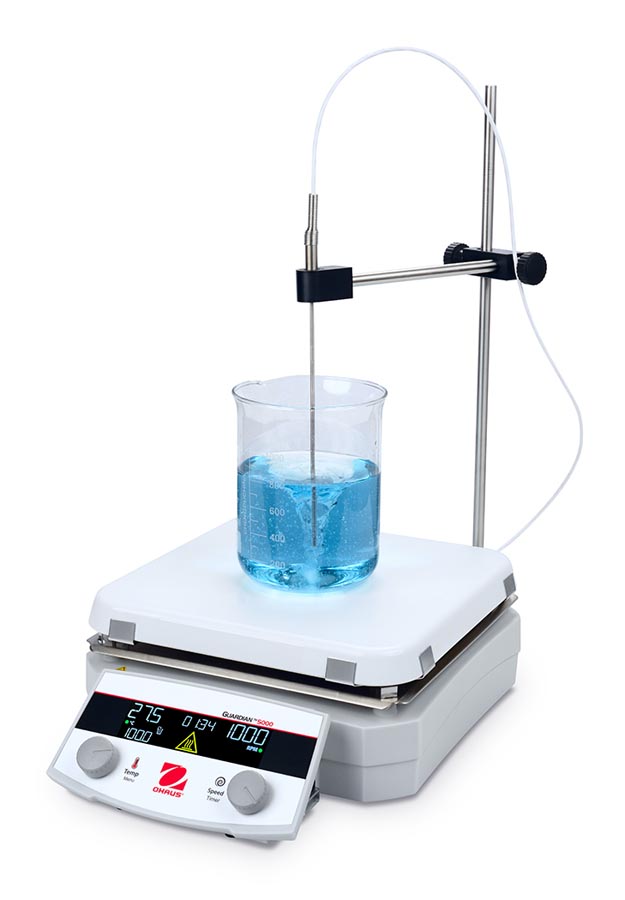

The Ohaus E-G52HS10C-K1 digital hotplate stirrer Kit has a 10 x 10 inch ceramic pan and a Ambient +5° to 550°C temperature range with a 50 to 1,800 RPM stirring range.

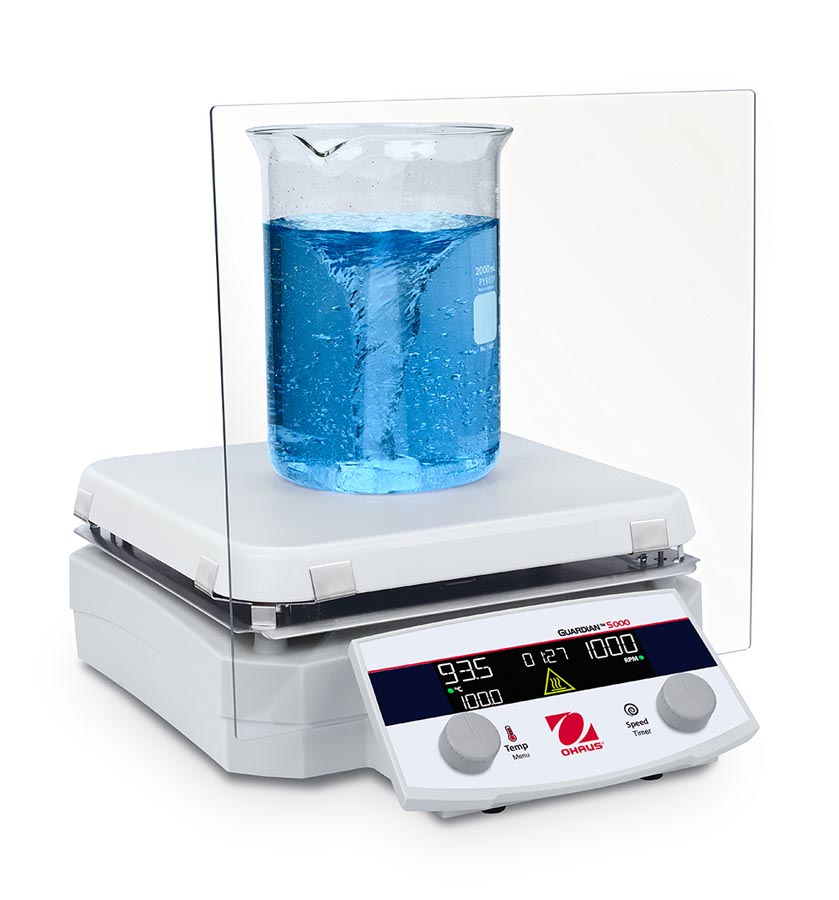

  • Our signature SafetyHeat™ and SmartHeat™ features combined with the new Run Dry Protection system plus the Time Run mode and the optional Splash Shield provide complete safety.

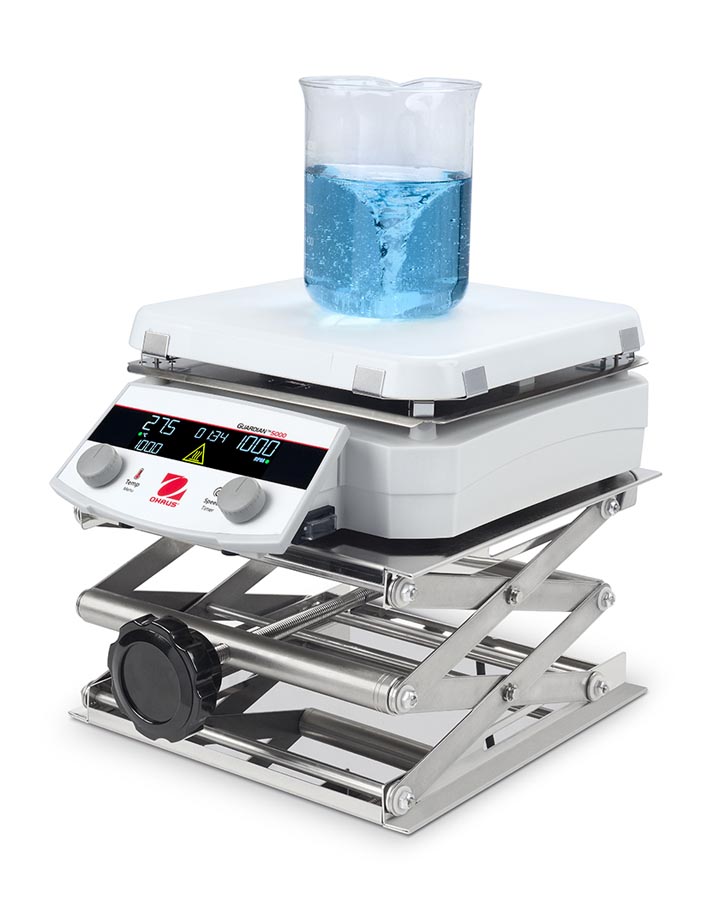

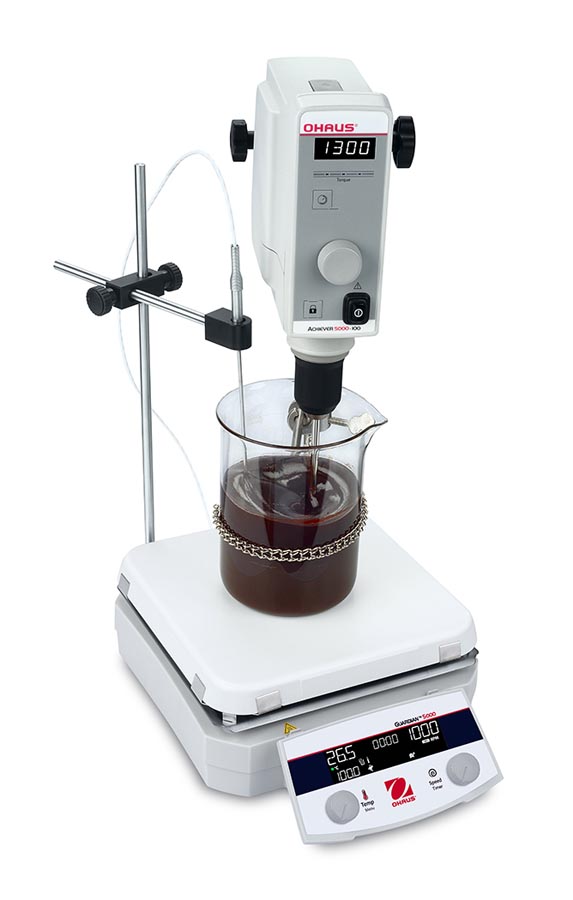

  • The evolved SmartRate™ system supports heating & stirring from fast and intensive to soft and precise, with a range of accessories to empower a variety of applications.

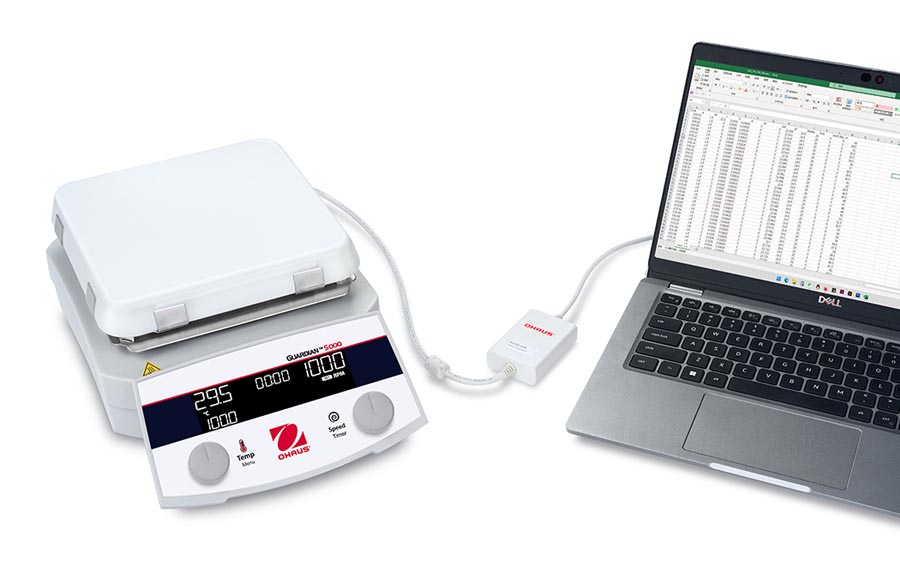

  • An intuitive user interface featuring a large, bright LCD screen with white characters & knob button(s), allows for user friendly operation. RS232 port included for remote control or data logging.
  • 2 year warranty
Technical Specifications:
FunctionStirring Hotplate

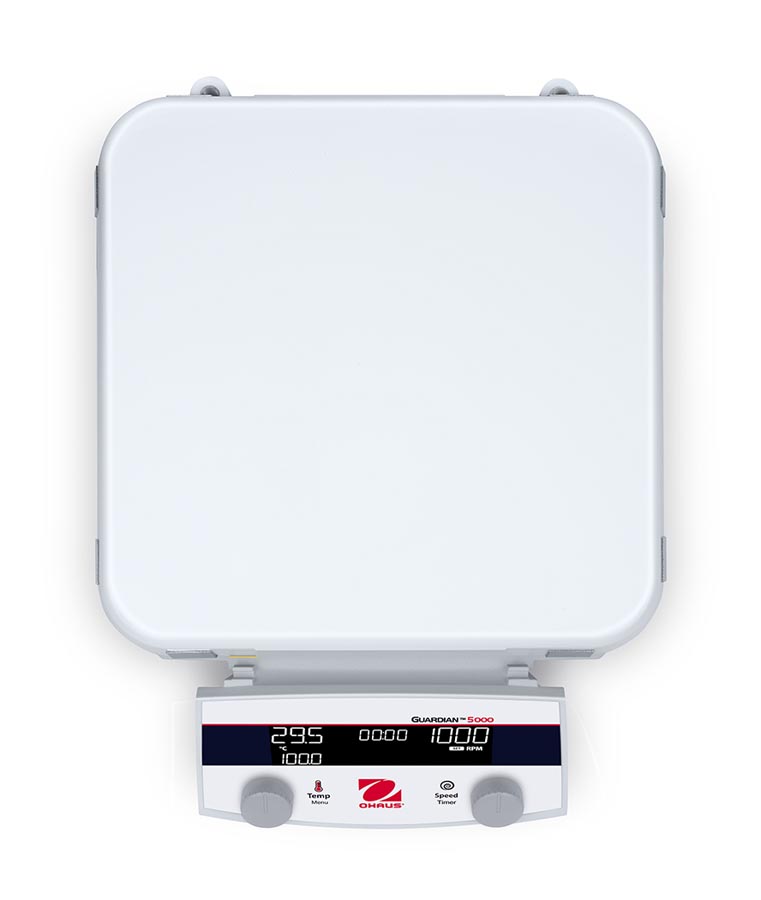

Top Plate Size10 x 10 inches (26 x 26 cm)
Top Plate MaterialCeramic
Housing MaterialPainted Aluminum
Display4.5 x 1.2 inch (115 x 30 mm) White Character LCD
Timer1 minute to 99 hours 59 minutes
Temperature RangeAmbient +5° to 360°C
Temperature Increments & Readability0.5°C
Temperature Stability±1% Plate, below 100°C ±1°C
±0.5% Probe, below 100°C ±0.5°C
Temperature Calibration (SPC) Set Points3 points for Platice and 3 points for Probe
Probe ConnectionPT100, PT1000 (Class A)
Probe Temperature Measurement Accuracy±:0.2°C + PT1000 (Class A) Tolerance
Heating Power1650 Watts
Stirring Speed Range50 to 1,800 rpm
Stirring Speed Stability±2%
Stirring Capacity (H2O)22 Liters
Data Logging & Remote Controlbuilt-in RS232, optional RS232-USB interface kit, optional RS232-Ethernet interface kit
IP RatingIP32
Dimensions (L x W x H)15.84 x 11.28 x 4.65 inches (402 x 287 x 118 mm)
Working Environment41°F – 104°F (5°C – 40°C), 80% RH non-condensing
Basic Model Net Weight14.8 lbs (6.7 kg)
Electrical100 - 120V, 8 A, 50/60 Hz
