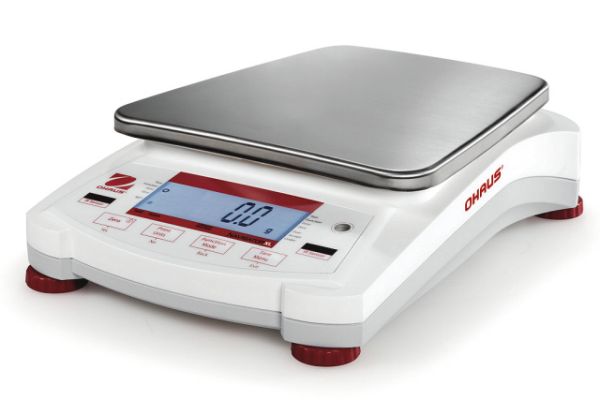

Ohaus NVL5101/1 Precision Balance

Email a Friend Add to Favorites
SKU
NVL5101/1
  • $555.20
  • $694.00 You Save 20.00%

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

The only scale in its class with toughless sensors that free up your hands! Ohaus raises the bar in value oriented scales. The Navagator offers a host of features, versatility and performance that fit a wide range of industrial, food and lab weighing applications.

  • IR Touchless Sensors for Hands-Free Operation
  • Stabilization in less than One Second for Increased Productivity
  • Applications Include Parts Counting, Checkweighing and Percent Weighing
  • Multiple Weighing Units Supported
  • Superior Mechanical Overload System, Withstands Overloads of up to 400% of Rated Capacity!
  • Internal Rechargeable SLA (Sealed Lead Acid) Battery
  • User Selectable External Span or Linearity Calibration
  • 2 Year Warranty!
Technical Specifications:
Capacity 5100g
Readability 0.5g
Pan Size 7.6 x 8"
Repeatability / Linearity 0.5 g / &177;1 g
Span Calibration Mass 5 lb / 3 kg
Linearity Calibration Mass 5 lb, 10 lb / 3, 5kg
Calibration User selectable external span or linearity calibration / Digital with external weight
Weighing Units Pound, Ounce (decimal/fractional), Pound:Ounce (decimal/fractional ounce), Kilogram, Gram, Troy Ounce, Grain, Newton, Carat, Pennyweight, Tael (Hong Kong, Taiwan, Singapore), Tical, Tola
Application Modes Weighing, Percent Weighing, Parts Counting (min AWP, 1d), Checkweighing, Display Hold, Accumulation/Totalization
Display 0.78in./20mm high, 6-digit, 7-segment LCD with white LED backlight
Checkweigh Indicators Aver-Accept-Under LCD annunciators
Keyboard 4 mechanical keys, raised and with tactile feedback / 2 IR touchless sensors
Leveling Adjustment Front-mounted level bubble with illumination / adjustable leveling feet with skid-resistant rubber pads
Ingress Protection IP43
Tare Range Full capacity by subtraction
Stabilization Time 1 second or less
Overload Capacity 400% of rated capacity
Power AC Adapter (included) 12VDC, 0.42A Output , 100-240V, 0.25A, 50-60Hz Input
Battery Internal rechargeable lead acid battery, 6V1.2AH (100-hour typical operation with 12-hour full charge) or 4C (LR14) batteries (not included)
Power Conservation User-enabled auto power -off after 5 minuted of inactivity
Operating Temperature 50 to 104 deg F / 10 to 40 deg C @ 20% RH, non-condensing
Pan Size 7.6 x 8 in / 194 x 203 mm
Scale Dimensions 8 x 11.1 x 2.9 in / 204 x 282 x 74 mm
Shipping Dimensions 16 x 12.8 x 6.7 in / 390 x 325 x 170 mm
Net Weight 4.3 lb / 2.0kg
Shipping Weight 6.1 lb / 2.8kg
