SKU
D52XW125WTX7
  • $2,309.80
  • $3,811.00 You Save 39.39%

Description

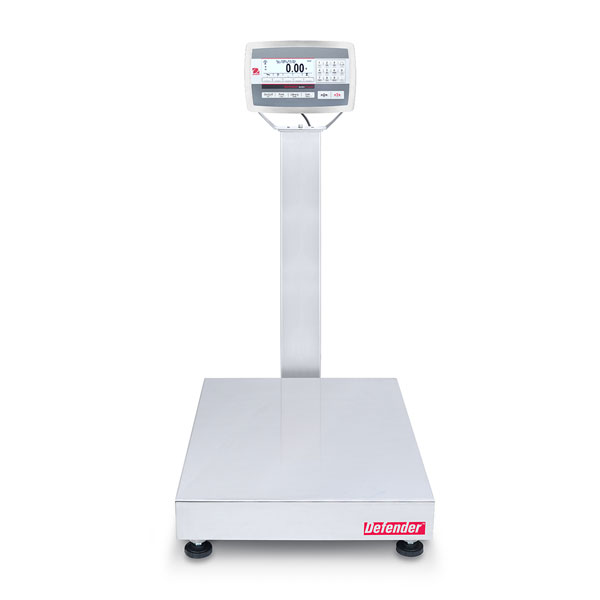

The Ohaus D52XW125WTX7 Defender 5000 washdown bench scale has a capacity of 250 lbs (125 kg) with a readability of 0.01 lbs (5 g) and has a 18 x 24 inch pan size. The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

  • Indicator Guides The User with On-Screen Prompts See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments Durably constructed with a stainless steel platform, frame, column, IP67 loadcell and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
Technical Specifications:
Capacity x Readability250 x 0.01 lbx / 125 kg x 5 g
Maximum Displayed Resolution1:25,000
Capacity x Certified Readability250 x 0.05 lbx / 125 kg x 50 g
Min APW0.25 g
Internal Counting Resolution1:500,000
Linearity / Repeatability±2d
IndicatorTD52XW (stainless steel)
Column26.8 inches / 680 mm stainless steel
Base ConstructionStainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity150% of maximum capacity
Stabilization TimeWithin 1 second
Operating Temperature Range14°F to 104°F / -10°C to 40°C
Scale DimensionsBase: 24 x 18 x 5.1 inches / 610 x 457 x 130 mm
Overall: 30.5 x 18 x 36.8 inches / 775 x 457 x 934 mm
Net Weight (Approx.)68.4 lbs / 31 kg
Shipping Dimensions39.1 x 26.8 x 9.25 inches / 994 x 680 x 235 mm
Shipping Weight72.8 lbs / 33 kg
