SKU
D52XW50WQR5
  • $1,523.10
  • $2,513.00 You Save 39.39%

Description

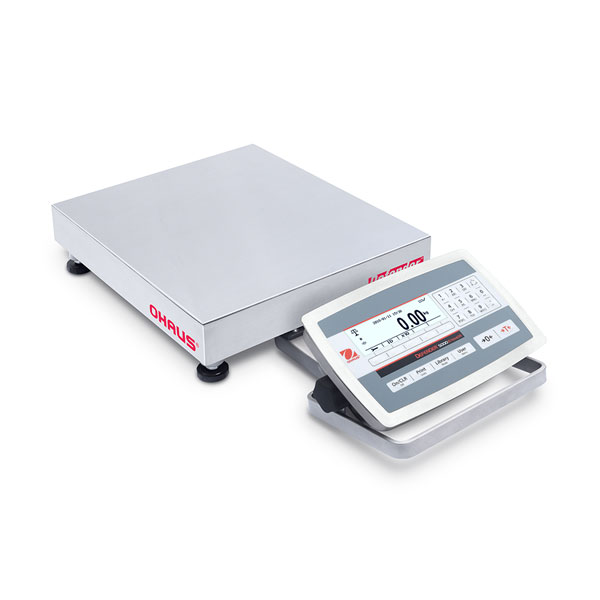

The Ohaus D52XW50WQR5 Defender 5000 washdown low profile bench scale has a capacity of 100 lbs (50 kg) with a readability of 0.005 lbs (2 g) and has a 12 x 12 inch pan size. The OHAUS next generation Defender 5000 Series low profile multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

  • Indicator Guides The User with On-Screen Prompts See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments Durably constructed with a stainless steel platform, frame, indicator front mount, IP67 loadcell and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
Technical Specifications:
Capacity x Readability100 x 0.005 lbs / 50 kg x 2 g
Maximum Displayed Resolution1:25,000
Capacity x Certified Readability100 x 0.02 lbs / 50 kg x 10 g
Min APW0.1 g
Internal Counting Resolution1:500,000
Linearity / Repeatability±2d
IndicatorTD52XW (stainless steel)
MountStainless steel front-mount bracket with handle
Base ConstructionStainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity150% of maximum capacity
Stabilization TimeWithin 1 second
Operating Temperature Range14°F to 104°F / -10°C to 40°C
Scale DimensionsBase: 12 x 12 x 3.7 inches / 305 x 305 x 95 mm
Overall: 23.1 x 12 x 3.7 inches / 588 x 305 x 95 mm
Net Weight (Approx.)24.3 lbs / 11 kg
Shipping Dimensions18.9 x 17.5 x 14.3 inches / 480 x 448 x 363 mm
Shipping Weight26.5 lbs / 12 kg
