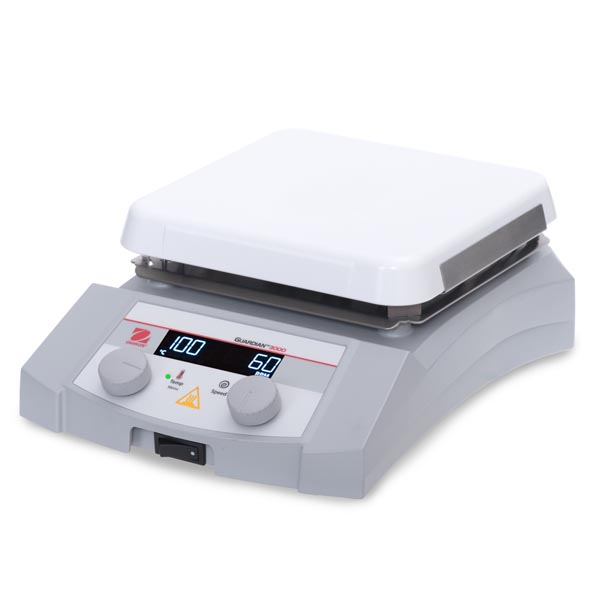

The Ohaus E-G31HS07C hotplate stirrer has a temperature range of Ambient +5°C to 500°C with a stirring range of 80 - 1,600 rpm and a 7 x 7 inch pan size. OHAUS Guardian 3000™ Hotplate Stirrers are designed for economical heating and stirring in all laboratory settings. The bright LCD display includes easy-to-read temperature and speed settings, intuitive icons and a prominent hot top indicator that lights up when the heater is above 40°C. Select from three plate sizes to suit your application. All models can be used with the optional temperature probe for precise temperature control of the sample.
Temperature Range | Ambient +5°C - 500°C |
---|---|
Temperature Stability | ±3% Plate, below 100°C ±2% and ±2% Probe, below 100°C ±2°C |
Speed Range | 80 to 1,600 rpm |
Speed Stability | ±2% |
Top Plate Size | 7 x 7 inches (17.8 x 17.8 cm) |
Temperature Calibration | 1 Plate and 1 Probe |
Control | Digital |
Display | Backlit LCD for Temperature and Speed |
Capacity | 15 L |
Top Plate Material | Ceramic |
Dimensions (H x L x W) | 4.4 x 12.5 x 8.8 inches (11.2 x 31.8 x 22.2 cm) |
Power | 100V - 120V ~10A 50/60Hz 220V - 240V ~7A 50/60Hz |
Power Consumption | 1050W (120V) 1050W 230V |
Working Environment | 41° - 104°F (5°C - 40°C), 80% RH, non-condensing |
