SKU
DT33XW
  • $356.40
  • $588.00 You Save 39.39%

Description

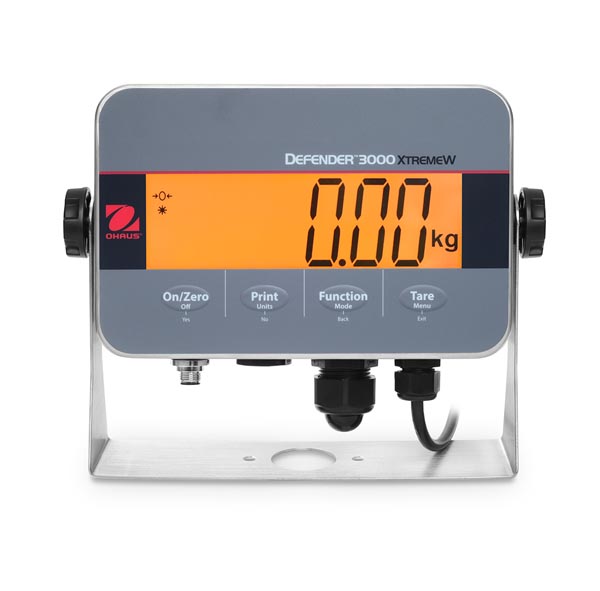

i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, a large multicolor backlit LCD display, stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.

  • Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes color (yellow/green/red) to alert when it is within the target weight range.
  • Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.
  • Indicator features an IP66 protected 304-stainless steel housing with bracket. Display resolution up to 1:30,000; OIML approved resolution 1:10,000; NTEP and Measurement Canada approved to 1:6,000.
Technical Specifications:
Construction 304 stainless steel housing and mounting bracket
Protection IP66
A/D Conversion Rate 80 Hz
Capacity Selections Up to 99,999 g/kg/lb/t
Maximum Displayed Resolution 1:30,000
Maximum Approved Resolution 1:6,000 Class III/IIIL NTEP and Class III/IIIHD Measurement Canada
Weighing Units g, kg, lb, oz, lb:oz, metric tonnes
Application Modes Weighing, Counting, Checkweighing, Totalization
Display 6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Check Indicator 3 color (red, green, yellow) backlight
Keyboard 4 membrane function keys
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Zero, Span or 3 point-Linear
Span Calibration 1 kg or 1 lb to capacity
Internal Resolution 68,500 counts per mV/V per second
Digital Filtering/Type Averaging
Load Cell Excitation Voltage 5VDC
Load Cell Drive Up to 6 x 350 ohm load cells
Load Cell Input Sensitivity Up to 3 mV/V
Stabilization Time Within 1 second
Power 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery
Battery Life Up to 100 hours continuous use with backlight off
Interface RS232 included, Optional second port USB Device or Ethernet
Shipping Dimensions 300 x 265 x 135 mm / 11.8 x 10.4 x 5.3 in
Product Dimensions (with bracket) 256 x 204 x 74 mm / 10.1 x 8 x 2.9 in
Approx. Net Weight 3 kg / 6.6 lb
Approx. Shipping Weight 3.4 kg / 7.5 lb
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
