SKU
PR523/E
  • $1,272.45
  • $1,497.00 You Save 25.46%

Description

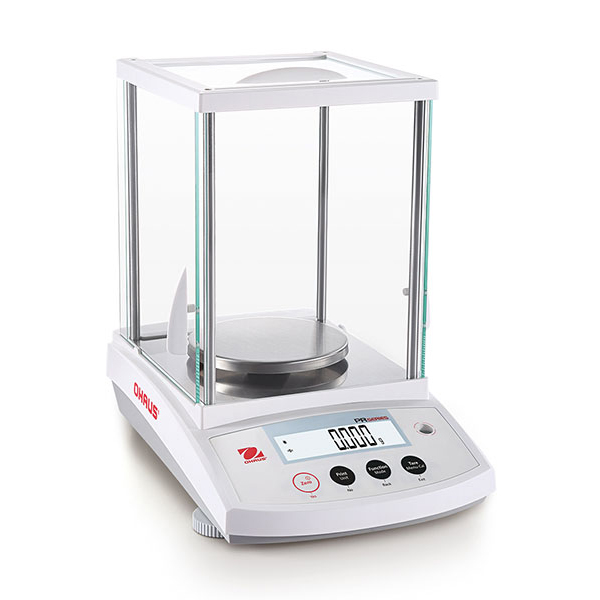

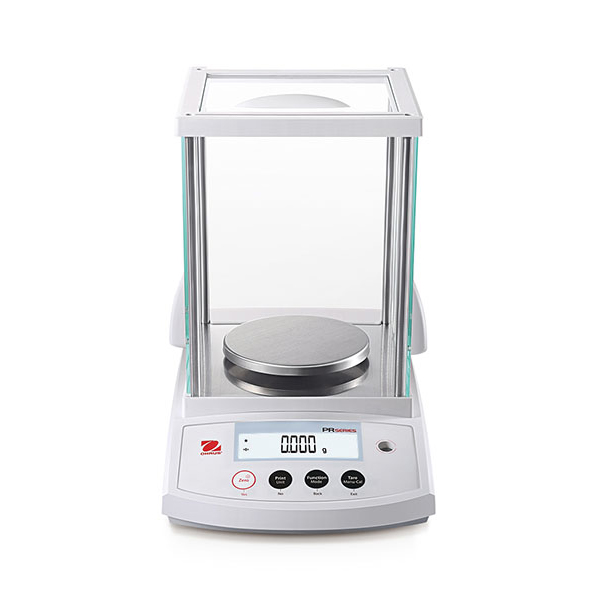

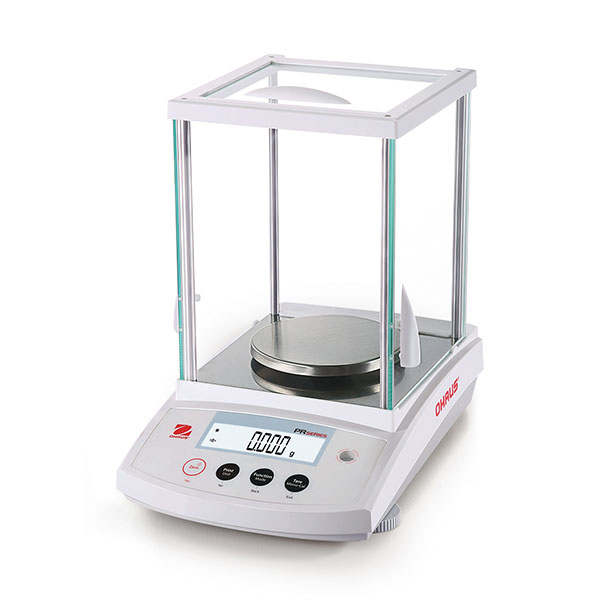

The OHAUS PR523/E precision balance has a capacity of 520 g with a readability of 1 mg and comes with a 4.72" (120 mm) diameter weighing pan. Offering accuracy and repeatability in essential weighing applications in laboratory, industrial and education settings, PR Analytical and Precision Balances deliver competitive performance at an economical price. Featuring RS-232 connectivity for easy communication, and a backlit display and a simple interface for uncomplicated operation, the PR is perfectly designed for your workplace.

  • Basic Functionality for Routine Weighing Applications
    The PR is equipped with three essential weighing modes, RS-232 connectivity for data transfer and storage, making it ideal for routine weighing applications.
  • Designed for Uncomplicated Operation with Easy-to-Use Display and Interface
    Equipped with an easy-to-read, bright backlit display and a simple user interface, the PR is incredibly easy to operate, with almost no training required.
  • Smart Design and Durable Construction
    The PR's small footprint saves desktop space while providing a large weighing surface. The PR is durably constructed, and features a stainless steel pan to withstand day-to-day use in the workplace.
  • 2 year warranty
Technical Specifications:
Capacity520 g
Readability (Certified)0.001 g (1 mg)
Pan Size Ø4.72 inches / 120 mm
Draftshield Size (W x D x H)6.8 x 5.1 x 8.1 inches / 172 x 131 x 205 mm
Repeatability (STDEV) (g)0.001 g
Linearity (g)±0.002 g
Stabilization Time2 seconds
Unitsg, mg, ct, dwt, grain, oz, ozt
ApplicationsBasic Weighing, Parts Counting, Percent Weighing
Power SupplyPower Input: 100 - 240V ~ 200mA 50/60Hz 12 - 18VA
Power Output: 12 VDC 0.5A
Overall Dimensions7.9 x 12.5 x 11.9 inches / 201 x 317 x 303 mm
Operating Conditions50° to 86°F / 10° to 30°C
Storage Conditions14° to 140°F / -10° to 60°C at 10% to 90% relative humidity, non-condensing
Net Weight10 lbs / 4.5 kg
Shipping Weight15.4 lbs / 7 kg
Shipping Dimensions20 x 15 x 21 inches / 507 x 387 x 531 mm
