Description

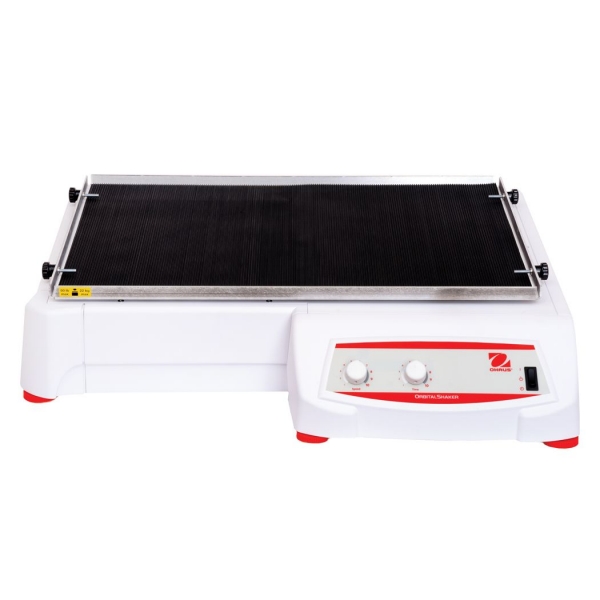

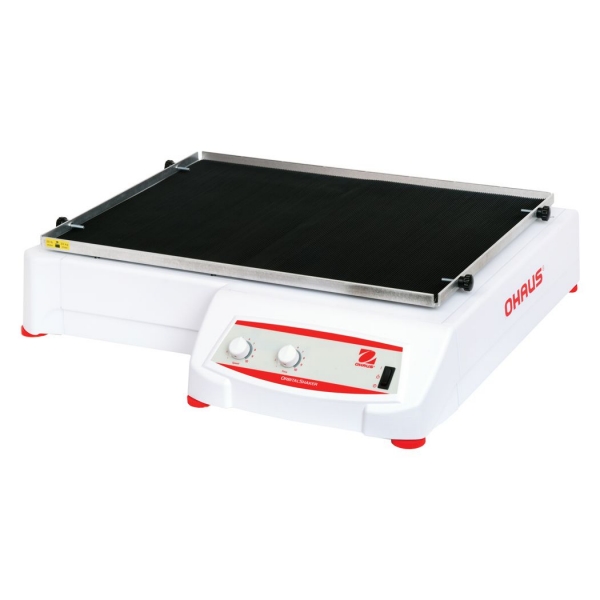

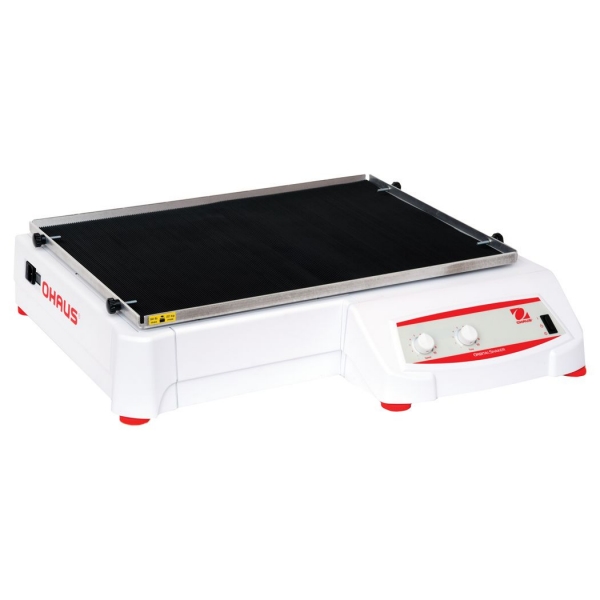

The Ohaus SHHD2325AL Heavy Duty Shaker has a speed range of 25 to 500 rpm with a tray size of 18 by 24 inches. With load capacities from 35 to 150 lb and over 70 accessory options, OHAUS Heavy Duty Shakers are designed to handle a range of applications. Available as analog or digital models with microprocessor control to provide variable speed and consistent shaking, while ramping to the set speed. Microprocessor displays the last set-point and will restart if power is interrupted. Built-in tray and non-slip rubber mat included with all models.

  • Patented Accu-Drive Shaking System Ensures Accuracy and Speed Control
  • Touchpad Control With Independent LED Displays for Speed/Time on Digital Models
  • Safety Features Include Speed Ramping and Load Sensor
Technical Specifications:
MotionOrbital, 25 mm (1 in)
Capacity50 lb / 22.7 kg
Speed Range25 rpm - 500 rpm
Speed Accuracy±1 rpm, Above 100 rpm ±1% of set speed
Tray Size (LxW)18 x 24 in / 45.7 x 61 cm
Tray ConstructionAluminum
ControlAnalog
Drive SystemBrushless DC Motor, Triple Eccentric
Orbit1 in / 25 mm
Timer1 minute - 120 minutes
Dimensions (LxWxH)24 x 26.7 x 5.9 in / 61 x 67.8 x 14.9 cm
Power120V, 5A, 50/60Hz
Power Consumption75 Watt
Safety CertificationTUV
Working Environment32°F - 104°F / 0°C - 40°C, 80%RH, non-condensing
Net Weight108 lb / 49 kg
CalibrationSpeed Calibration
