SKU
SHHD4525DG
  • $7,269.40
  • $9,996.00 You Save 27.28%

Description

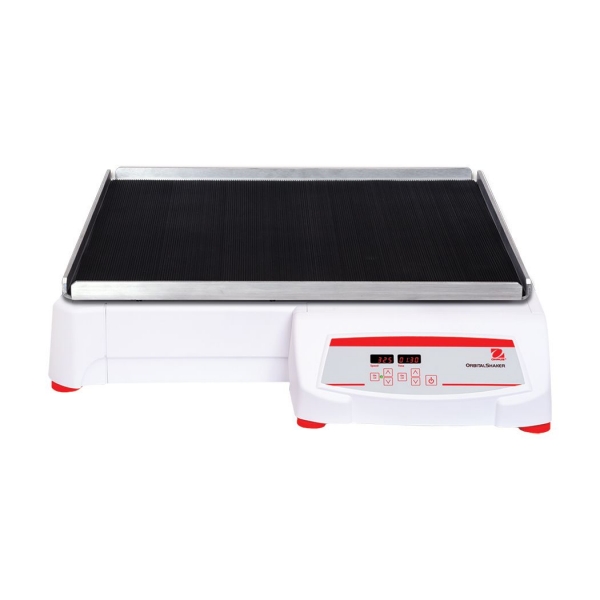

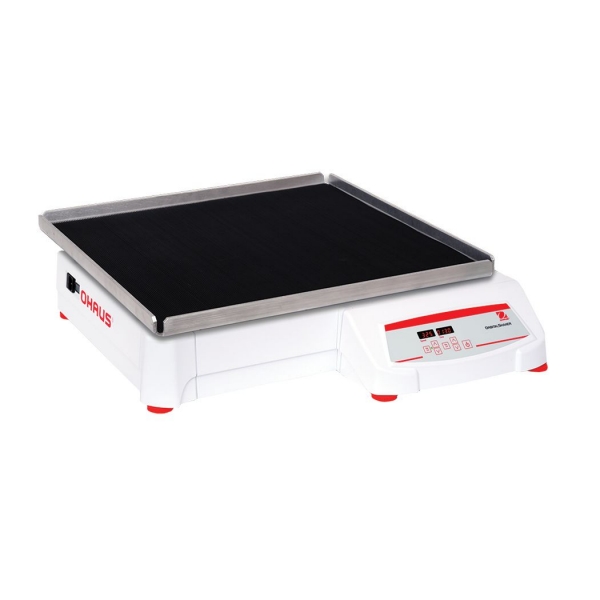

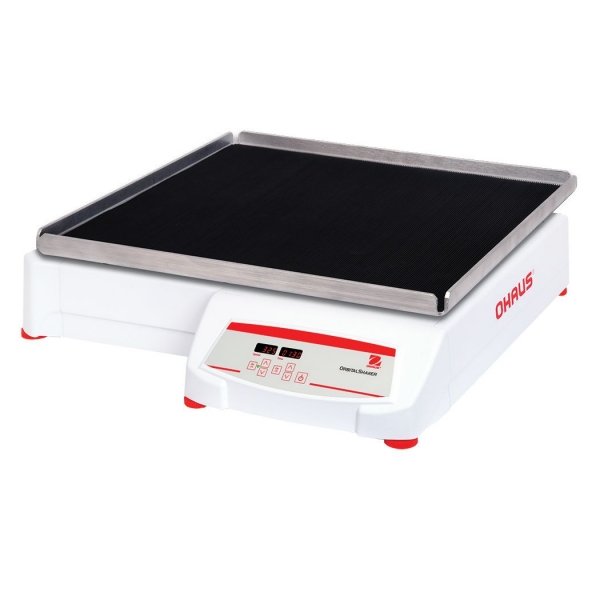

The Ohaus SHHD4525DG Heavy Duty Shaker has a speed range of 15 to 500 rpm with a tray size of 24 by 24 inches. With load capacities from 35 to 150 lb and over 70 accessory options, OHAUS Heavy Duty Shakers are designed to handle a range of applications. Available as analog or digital models with microprocessor control to provide variable speed and consistent shaking, while ramping to the set speed. Microprocessor displays the last set-point and will restart if power is interrupted. Built-in tray and non-slip rubber mat included with all models.

  • Patented Accu-Drive Shaking System Ensures Accuracy and Speed Control
  • Touchpad Control With Independent LED Displays for Speed/Time on Digital Models
  • Safety Features Include Speed Ramping and Load Sensor
Technical Specifications:
MotionOrbital, 25 mm (1 in)
Capacity100 lb / 45.4 kg
Speed Range15 rpm - 500 rpm
Speed Accuracy±1 rpm, Above 100 rpm ±1% of set speed
Tray Size (LxW)24 x 24 in / 61x 61 cm
Tray ConstructionAluminum
ControlDigital
Drive SystemBrushless DC Motor, Triple Eccentric
Orbit1 in / 25 mm
Timer1 second - 160 hours
Dimensions (LxWxH)28.7 x 26.7 x 6.7 in / 72.9 x 67.8 x 17 cm
Power120V, 5A, 50/60Hz
Power Consumption80 Watt
Safety CertificationTUV
Working Environment14°F - 140°F / -10°C - 60°C, 80%RH, non-condensing
Net Weight199 lb / 90.3 kg
CalibrationSpeed Calibration
