Description

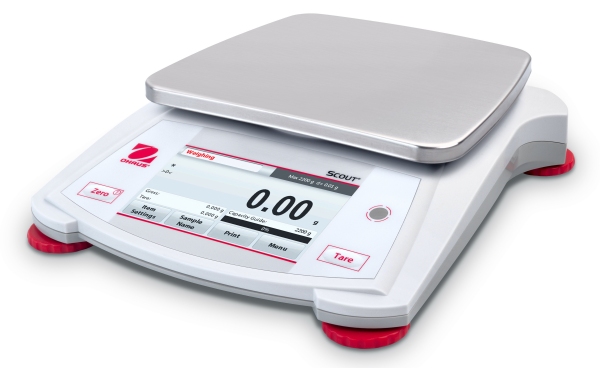

The Ohaus Scout STX6201 touchscreen portable balance has a capacity of 6200 grams and a readability of 0.1 grams with a pan size of 5.5 x 6.7 inches. Introducing The Scout STX, The First Touchscreen Portable Balance! The next generation of the OHAUS Scout boasts the most user-friendly experience yet, featuring clearly labeled on-screen buttons, settings, and application modes. The Scout STX is designed for fast and simple use in any environment, with guided step-by-step instructions, a touchscreen display that's even responsive with lab gloves on, and an easy-to-clean sealed front panel. Improve your customers' work flow, with the intuitive operation of the OHAUS Scout STX.

  • Large, resilient color touchscreen allows for effortless operation of the Scout through its informative icon driven menu structure, guiding the user through every step of the weighing application.
  • Stabilization time as fast as 1 sec means increased productivity in your facility. Equipped with advanced weighing technology, the Scout also ensures repeatable and reliable weighing results.
  • Integrated superior overload protection system rated at 10 times the capacity protects the balance in rugged and demanding environments. The space-saving, slim design allows for stackable storage.
  • RS232, USB Host, USB Device, Ethernet or Bluetooth (available as accessories)
  • 2 Year warranty
Technical Specifications:
Capacity 6200 g
Readability 0.1 g
Pan Size 5.5 x 6.7" / 140 mm x 170 mm
Repeatability (Std. Dev.) 0.1 g
Linearity 0.2 g
Span Calibration Mass 5 kg
Linearity Calibration Masses 3, 5 kg
Stabilization Time 1 second
Construction ABS housing & stainless steel pan
Calibration User-selectable external span or linearity calibration / Digital with external weight
Tare Range Full capacity by subtraction
Weighing Units mg, g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn, hkt, sgt, twt, tical, tola, Customer unit 1
Application Modes Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal / Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing
Power Standard AC Power Adapter - 5VDC 1A output, or 4 AA dry battery (not included)
Typical Battery Life 7 hours
Interfaces RS232 (Optional), USB Device (Optional), Ethernet (Optional), Bluetooth (Optional), USB Host (Optional)
Display Type Full-Color Touchscreen WQVGA Graphic LCD
Overload Capacity 10 times rated capacity
Operating Temperature Range 50° - 104°F / 10° - 40°C
10% to 85% at 31°C, decreasing linearly to 50% at 40°C, non-condensing
Storage Conditions -4° - 131°F / -20° - 55°C at 10% to 90% relative humidity, non-condensing
Dimensions (W x D x H) 8 x 8.8 x 2.1 in / 202 x 224 x 54 mm
Shipping Dimensions (W x D x H) / Weight 11.8 x 9.8 x 3.4 in / 3.5 lbs
