SKU
VN31P5000L
  • $1,374.10
  • $2,240.00 You Save 38.66%

Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

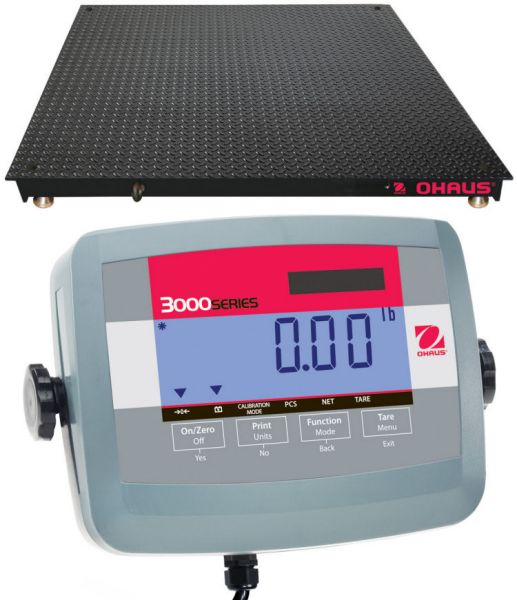

The Ohaus VN31P5000L industrial floor scale has a 5,000 pound capacity with a 1 pound readability and a 4 foot square diamond plate platform.The OHAUS VN Series floor scales are the value solution to your dry weighing needs in industrial and commercial applications. Its high-quality construction is designed to minimize distortion under heavy loads, and ensures years of dependable use. NTEP certification ensures consistent weighing performance.

  • 5 mm / 0.196" thick painted carbon steel top plate with raised cross-hatch surface for added slip resistance
  • Four NTEP certified shear beam load cells protected to IP67
  • Side access NEMA 4X / IP65 dust and water protected stainless steel junction box with 16.5’ long indicator cable
  • Four self-swiveling ball-in-cup feet, with top-access leveling adjustment for easy installation
  • Internal structural bracing ensures platform rigidity during everyday use
  • Carbon steel eyebolts (included) attach to side of platform for easy lifting and positioning
  • Large 1" high digit backlit LCD display
  • Includes Counting Mode with a minimum Average Piece Weight of 1d, selectable sample sizes, automatic retention of last sample size used and Average Piece Weight
  • Built-in bidirectional RS232C interface for printing or connection to PC
  • Power using included 80-hour internal rechargeable lead acid battery or included AC adapter
  • Wall mount bracket included
  • 1 Year Manufacturer's Warranty
Technical Specifications:
Capacity 5,000 lbs / 2,500 kg
Readability 1 lb / 0.5 kg
Pan Size 4 ft x 4 ft x 3.5 in
NTEP Resolution 1:5,000
Indicator T31P
Construction 5 mm / 0.196" painted carbon steel platform with ABS housed indicator
Load Cell 4 x 2,500 lbs nickel-plated alloy steel shear beam IP67 protected
Feet 4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top levelling
Junction Box NEMA 4X / IP65, 304 stainless steel, with 16.5 ft / 3 m long indicator cable
Maximum Central Load 160% of maximum capacity
Safe Endload Capacity 100% of maximum capacity
Protection IP67 for shear beam load cells, NEMA4X/IP65 for junction box
Weighing Units lb or kg
Modes Weighing, Counting
Counting feature not NTEP certified
Display 1" / 25 mm high, 6-digit, 7-segment bright white backlit LCD
Keyboard 4-button mechanical switches
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3d
Zeroing Range 0%, 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Interface 14°F to 104°F / -10°C to 40°C
Power 9VDC, 0.5A AC adapter or internal rechargeable sealed lead acid battery (100-hour typical operation with full charge) - both included
Platform Dimensions (W x D x H) 4ft x 4ft x 3.5 in
Indicator Dimensions (W x D x H) 8.2 x 2.8 x 6.5 in / 210 x 71 x 168 mm
Net Weight 282 lb / 128 kg
