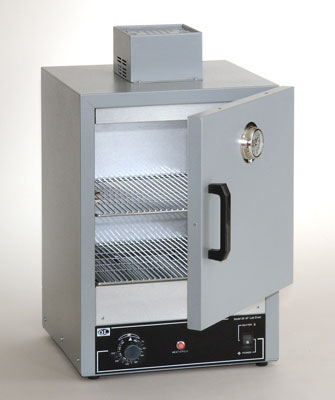

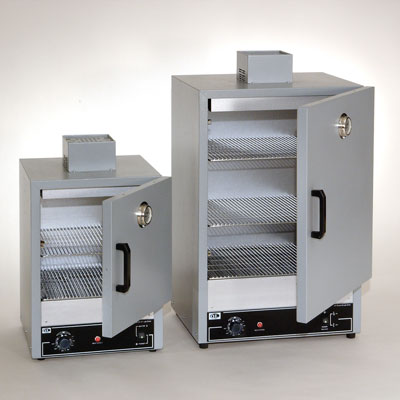

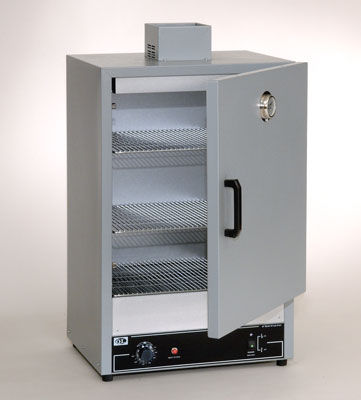

Quincy lab, Inc. Mechanical Convection Laboratory Ovens

The AF series ovens are competitively priced and offer exceptional value and reliability
The AF series ovens are competitively priced and offer exceptional value and reliability.,

  • New Design, Energy Efficient, Versatile
  • Each oven is tested and approved before shipment. Ready-to-use. No assembly is required
  • Models Available: up to 2.86 cubic feet
  • Maximum temperature: 225°C (437°F)

Product Description

  • These mechanical convection ovens are designed to meet the laboratory needs of industry, research organizations and schools. Well-crafted and versatile, they are used for drying, baking, sterilizing. evaporating, heat treating, annealing and testing
  • Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high impact thermoplastic handles. Cabinets have heavy steel double-wall construction
  • Work space is insulated from the outer cabinet with one inch of high density mineral wool, and interiors are made of corrosive-resistant aluminized steel
  • Quincy Lab uses quality UL and CSA recognized components in all ovens. The control panel is equipped with an illuminated ON-OFF rocker switch and a heat/cycle pilot light
  • Temperature is controlled by an automatic Hydraulic or a Bi-metal thermostat
  • Energy efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly
  • Full 18 month warranty

SKU:
Chamber (WxHxD) / VolumeTemperature RangeController
Price
Quantity
10AF 12 x 8.25 x 10 IN (0.6 CF)
30.5 x 21 x 25.4 CM (17 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Bi-Metal
Your Price: $756.20
20AF 13 x 11 x 13 IN (1.14 CF)
33 x 28 x 33 CM (32 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Hydraulic
Your Price: $898.40
30AF 18 x 14.2 x 12 IN (1.83 CF)
45.7 x 36 x 30.5 CM (52 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Hydraulic
Your Price: $1,038.70
40AF 18 x 19.8 x 14 IN (2.86 CF)
45.7 x 50.3 x 35.6 CM (81 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Hydraulic
Your Price: $1,270.60

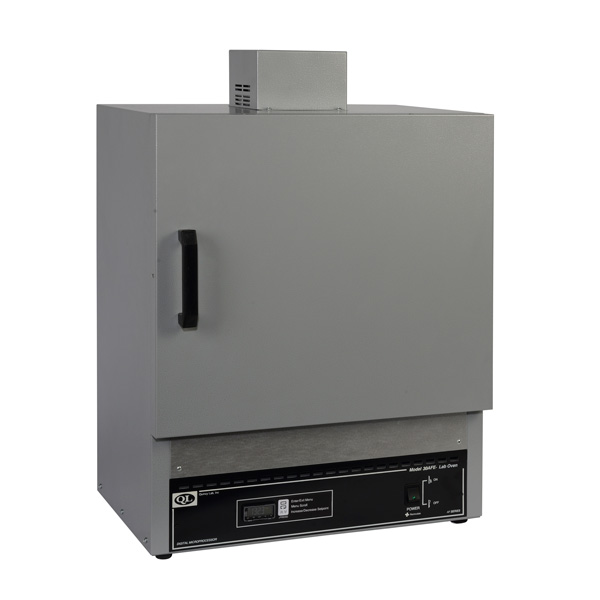

Quincy lab, Inc. AFE - Digital Forced Convection Laboratory Ovens

Digital laboratory mechanical convection ovens made in the USA at an affordable price. Quincy Lab uses only quality UL and CSA recognized components in all ovens.
The Quincy Lab AFE digital mechanicl convection laboratory ovens offer American Made quality at an affordable price. These economical lab ovens offer digital control with stability of 1 unit degree and a fan to provide forced air convection. All units are calibrated at the factory and are virtually maintenance free.,

  • Digital Microprocessor Control
  • Mechanical Convection
  • Durable Double-Wall construction
  • Scratch-resistant Hammer Finish
  • Corrosion-resistant Aluminized Interior
  • Proven Reliability
  • Full 18-month Factory Warranty
  • Made in USA

Advanced Design

  • Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.

Controls

  • The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of a full PID microprocessor that accurately maintains settings within ±0.5 °C (1 °F), even in varying ambient or power supply conditions. This feature helps to confirm stability or indicate any control malfunction or power loss throughout a process period. The digital controller features large LED's that continuously display set temperature and process temperature, as well as a setting lock mode that provides protection against accidental or inadvertent adjustment.

Heating Elements

  • Energy-efficient, low-watt density, incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly throughout the product chamber.

Uses

  • The 'AFE' models offer forced-air circulation allowing for uniform distribution of heat throughout the chamber, which also facilitates dehydration and evaporating. The AFE series ovens have temperature ranges of: ambient +25 °F minimum, to 450 °F/232 °C maximum, and are competitively priced and offer exceptional value and reliability.

SKU:
Chamber (WxHxD) / VolumeTemperature RangeController
Price
Quantity
10AFE 12 x 8.25 x 10 IN (0.6 CF)
30.5 x 21 x 25.4 CM (17 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Digital
Your Price: $1,016.90
20AFE 13 x 11 x 13 IN (1.14 CF)
33 x 28 x 33 CM (32.3 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Digital
Your Price: $1,124.20
30AFE 18 x 14.2 x 12 IN (1.83 CF)
45.7 x 36 x 30.5 CM (51.8 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Digital
Your Price: $1,288.30
40AFE 18 x 19.8 x 14 IN (2.86 CF)
45.7 x 50.3 x 35.6 CM (81 L)
Ambient +25° to 450°F
Ambient +9° to 232°C
Digital
Your Price: $1,454.30

Quincy lab, Inc. LT - Low-Temp Mechanical Convection Laboratory Ovens

Digital low-temp mechanical convection ovens at an affordable price.
The 'AFE-LT' models offer forced-air circulation allowing for uniform distribution of heat throughout the chamber, which also facilitates dehydration and evaporating.,

  • Digital Microprocessor Control
  • Mechanical Convection
  • Durable Double-Wall construction
  • Scratch-resistant Hammer Finish
  • Corrosion-resistant Aluminized Interior
  • Proven Reliability
  • Full 18-month Factory Warranty

Product Description

  • Advanced Design - Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
  • Controls - The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of a full PID microprocessor that accurately maintains settings within ±1.0°C, even in varying ambient or power supply conditions. A temperature-tracking feature stores temperature deviation from set point. This feature helps to confirm stability or indicate any control malfunction or power loss throughout a process period. The digital controller features large LED's that continuously display process temperature as well as a setting lock mode that provides protection against accidental or inadvertent adjustment.
  • Heating Elements - Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
  • AFE-LT Models - Quincy Lab uses only quality UL and CSA recognized components in all ovens. The 'AFE-LT' models offer forced-air circulation allowing for uniform distribution of heat throughout the chamber, which also facilitates dehydration and evaporating. The AFE-LT series ovens have a temperature range of 225°F/107°C, and are competitively priced and offer exceptional value and reliability.

SKU:
Chamber (WxHxD) / VolumeTemperature RangeController
Price
Quantity
10AFE-LT 12 x 8.25 x 10 IN (0.6 CF)
30.5 x 21 x 25.4 CM (17 L)
Ambient +15°F to 225°F (107°C)Digital
Your Price: $1,024.30
20AFE-LT 13 x 11 x 13 IN (1.14 CF)
33 x 28 x 33 CM (32.3 L)
Ambient +15°F to 225°F (107°C)Digital
Your Price: $1,115.80
30AFE-LT 18 x 14.2 x 12 IN (1.83 CF)
45.7 x 36 x 30.5 CM (51.8 L)
Ambient +15°F to 225°F (107°C)Digital
Your Price: $1,282.50
40AFE-LT 18 x 19.8 x 14 IN (2.86 CF)
45.7 x 50.3 x 35.6 CM (81 L)
Ambient +15°F to 225°F (107°C)Digital
Your Price: $1,462.90

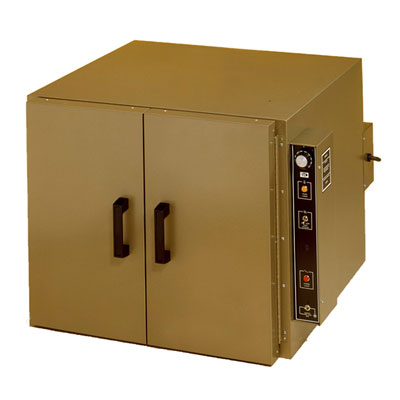

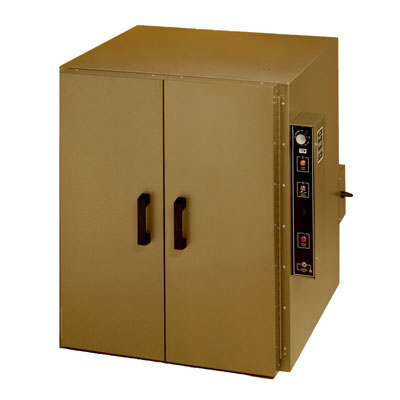

Quincy lab, Inc. Economical Bench Ovens

Used for drying, baking finishes, preheating, curing, dehydrating and many other processes
Used for drying, baking finishes, preheating, curing, dehydrating and many other processes. Models ending in "ER" come with digital PID microprocessor temperature controllers.,

  • All bench ovens have aluminized interiors. High impact thermoplastic cool handles are used
  • Models Available: 6.6, 7, 10, 10.6 cubic feet
  • Temperatures up to 550° F (287° C)
Standard Features
  • Fan forced air circulation for even work area temperature. Incoloy Sheathed elements of low watt density and large 7/16" diameter for long life
  • 6 lb mineral wool high density insulation for reduced heat loss and efficient operation
  • Adujstable shelves on 11/2" centers for total of eleven in either model
  • Piano type door hinges for proper alignment and fit
  • HIGH/LOW heat switch to help maintain greater sensitivity at lower set temperature
  • Baked in scratch resistant finish - six foot cord with plug furnished on all models
  • All bench ovens have aluminized interiors. High impact thermoplastic cool handles are used
  • Model 51-550 has a 6' electrical cord with a 3 prong grounded plug. No direct wiring is necessary
  • Models 21-350 and 31-350 have a 6' electrical cord with a 3 prong 20AMP plug
  • The amps rating above is based on 115 volt for all ovens except the model 51-550 which is 230 volt
  • Gasketed doors
  • Full 18 month guarantee

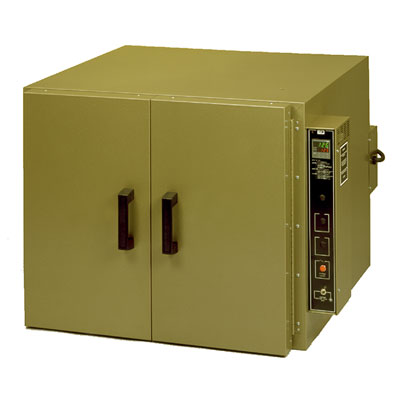

Features on Models 21-250ER, 21-250ER-1, 21-250ERS, 21-350ER, 31-350ER, 51-550ER, and 51-550ERS
  • Combines 21, 31, and 51 series design and dimensions with a precise digital PID microprocessor temperature controller. This microprocessor with a J type thermocouple will hold set temperatures accurately within 1 degree with improved chamber uniformity. Control features include large easy-to-read dual LED display, showing both set and process temperatures, select C or F units, autotune feature helps optimize PID parameters to balance oven performance for various work loads and applications. A versatile on/off control mode allows for even faster temperature recovery times and processing of batch-style work loads not requiring accurate temperature stability.

SKU:
Chamber (WxHxD) / VolumeTemperature RangeController Type
Price
Quantity
21-250 25.5 x 20 x 24 IN (7 CF)
65 x 51 x 61 CM (198 L)
Ambient +25°F - 300°FHydraulic
Your Price: $2,010.60
21-250ER 25.5 x 20 x 24 IN (7 CF)
65 x 51 x 61 CM (198 L)
Ambient +25°F - 300°FDigital
Your Price: $2,017.90
21-250ER-1 25.5 x 20 x 24 IN (7 CF)
65 x 51 x 61 CM (198 L)
Ambient +25°F - 300°FDigital
Your Price: $2,080.00
21-250ERS 25.5 x 20 x 24 IN (7 CF)
65 x 51 x 61 CM (198 L)
Ambient +25°F - 300°FDigital

21-350 25.5 x 20 x 24 IN (7 CF)
65 x 51 x 61 CM (198 L)
Ambient +25°F - 450°FHydraulic
Your Price: $2,117.90
21-350ER 25.5 x 20 x 24 IN (7 CF)
65 x 51 x 61 CM (198 L)
Ambient +25°F - 450°FDigital
Your Price: $2,272.60
31-350 25.5 x 30 x 24 IN (10.6 CF)
65 x 76 x 61 CM (300 L)
Ambient +25°F - 450°FHydraulic
Your Price: $2,251.00
31-350ER 25.5 x 30 x 24 IN (10 CF)
65 x 76 x 61 CM (283 L)
Ambient +25°F - 450°FDigital
Your Price: $2,353.10
51-550 25.5 x 20 x 22.5 IN (6.6 CF)
65 x 51 x 57 CM (187 L)
Ambient +25°F - 550°FHydraulic
Your Price: $2,402.20
51-550ER 25.5 x 20 x 22.5 IN (6.6 CF)
65 x 51 x 57 CM (187 L)
Ambient +25°F - 550°FDigital
Your Price: $2,501.40
51-550ERS 25.5 x 20 x 22.5 IN (6.6 CF)
65 x 51 x 57 CM (187 L)
Ambient +25°F - 550°FDigital
