DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

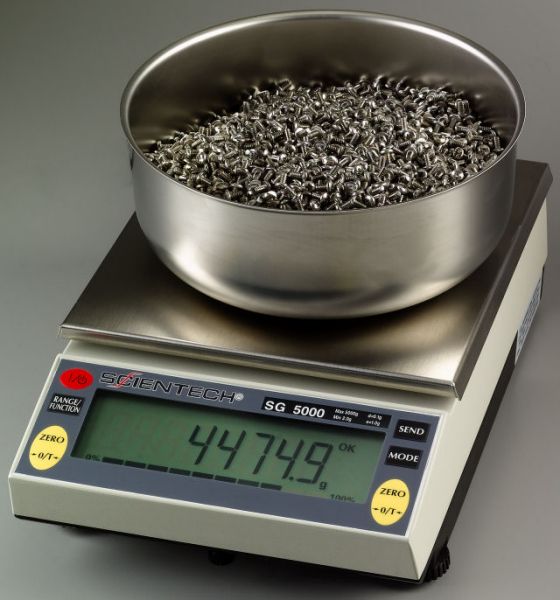

The SG Series high capacity balances are perfect for any high capacity application. All SG balances are microprocessor controlled with Scientech’s exclusive real time temperature compensation algorithm. This revolutionary internal software yields accurate, reproducible results without the need to recalibrate your balance as the ambient temperature varies.
| Capacity | 12,000 g |
|---|---|
| Readability | 0.1 g |
| Pan Size | 7.5 x 8.0" / 19.1 x 20.3 cm |
| Tare Range | 0 - 12,000 g |
| Repeatability (standard deviation) | 0.1 g |
| Linearity | ±0.15 g |
| Stabilization Time | ~3 Sec. |
| Weighing Speed | Adaptive |
| Display Update Interval | 300 ms |
| Data Interface | RS-232 bidirectional interface is standard. Baud rates are 300, 600, 1200, 2400, 4800, 9600 and 19,200 |
| Operating Temperature | 5°C to 40°C |
| Relative Humidity | 80 % for temperatures up to 31°C decreasing linearly to 50 % at 40°C |
| Power Supply | 115 Volts/60 Hz ± 10 % 230 Volts/50Hz or 60 Hz ± 10 % |
| Housing Dimensions (W x D x H) | 7.5 x 11.25 x 3.25" / 19.1 x 28.6 x 8.3 cm |
| Calibration Weight | 10,000 g, 5,000 g |
| Net Weight | 10.0 lbs / 4.6 kg |
