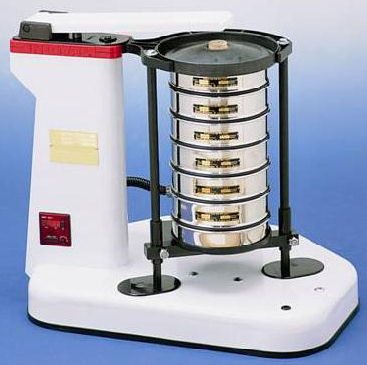

W.S. TYLER® RO-TAP® RX-29 8 Inch Sieve Shaker

  • Model #: RX-29
  • Your Price: $2,895.80
    List Price: $3,299.03

The W.S. Tyler® RX-29 RO-TAP® 8 Inch sieve shaker (110 volts / 60 Hertz) holds 6 full height sieves or 13 half height sieves. The Industry standard in test shakers, W.S. TYLER™ RO-TAP® RX has a unique two dimensional operation: a horizontal, circular motion and a vertical, topping motion. This special action allows material particles to stratify and "seek" critical openings in the test media. The result is the most accurate and consistent particle analysis testing.

  • Heavy duty, stationary unit
  • Features digital 99-minute timer/clock, accurate to 0.1 second
  • Requires minimal maintenance
  • Each unit test run and serialized prior to shipment
  • Sound enclosure and test stand available (see Accessories)
Technical Specifications:
Capacity Full Height - 6 Sieves
Half Height - 13 Sieves
Testing Applications 2" down through 635 mesh (20 micron)
Oscillations per Minute 278 ±10
Oscillations Displacement 1" x 0.75"
Taps per Minute 150 ±10
Hammer Weight 5 lbs., 6 oz.
Unit Dimensions (W x D x H) 28 x 21 x 25" / 71 x 54 x 64 cm
Shipping Dimensions (W x D x H) 31 x 23 x 31" / 77 x 59 x 77 cm
Unit Weight 180 lbs / 82 kg
Shipping Weight 190 lbs / 86 kg
Power 110 V / 60 Hz
