3 Inch Stainless Frame, Stainless Mesh Half Height Sieves

3 inch stainless frame, stainless mesh half height sieves
Showing 1 - 33 of 33 results
Model #:
CapacityReadabilityPan Size
Price
Quantity

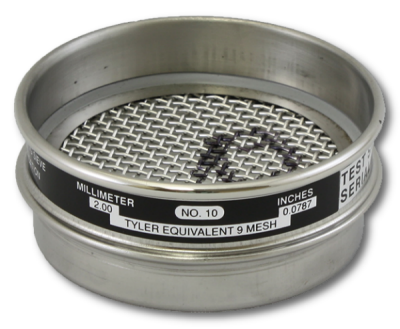

3 Inch Diameter Stainless/Stainless Half Height Sieves

These are 3 inch diameter half height stainless frame and cloth U.S. Standard and Metric (B.S.) Standard wire mesh sieves. These sieves conform to all ASTM E-11, AASHTO T-27 & M-27, NIST, ISO 3310-1, and BS410 specifications. Each sieve is supplied with a serial number and a matching certificate of compliance. The sieves are constructed of metal frames which are seamless and have extended bottoms. The sieve cloth is mounted without distortion and the joints are smooth to prevent catching of material. Sieves of the same diameter can be nested on top of each other.

  • Stainless steel frame with a stainless steel mesh/cloth
  • Height - 1-1/4" | Depth - 5/8"
  • Each test sieve is supplied with a serial sumber and a matching Test Sieve Certificate of Compliance


*NIST traceable certification available at additional cost.

SKU:
ConstructionMeshOverall Height
Price
Quantity
1700 Stainless Frame - Stainless ClothNo. 3-1/2 (5.6 mm)1-1/4"
Your Price: $45.00
1701 Stainless Frame - Stainless ClothNo. 4 (4.75 mm)1-1/4"
Your Price: $45.00
1702 Stainless Frame - Stainless ClothNo. 5 (4.00 mm)1-1/4"
Your Price: $45.00
1703 Stainless Frame - Stainless ClothNo. 6 (3.35 mm)1-1/4"
Your Price: $45.00
1704 Stainless Frame - Stainless ClothNo. 7 (2.80 mm)1-1/4"
Your Price: $45.00
1705 Stainless Frame - Stainless ClothNo. 8 (2.36 mm)1-1/4"
Your Price: $45.00
1706 Stainless Frame - Stainless ClothNo. 10 (2.00 mm)1-1/4"
Your Price: $45.00
1707 Stainless Frame - Stainless ClothNo. 12 (1.70 mm)1-1/4"
Your Price: $45.00
1708 Stainless Frame - Stainless ClothNo. 14 (1.40 mm)1-1/4"
Your Price: $45.00
1709 Stainless Frame - Stainless ClothNo. 16 (1.18 mm)1-1/4"
Your Price: $45.00
1710 Stainless Frame - Stainless ClothNo. 18 (1.00 mm)1-1/4"
Your Price: $45.00
1711 Stainless Frame - Stainless ClothNo. 20 (850 µm)1-1/4"
Your Price: $45.00
1712 Stainless Frame - Stainless ClothNo. 25 (710 µm)1-1/4"
Your Price: $45.00
1713 Stainless Frame - Stainless ClothNo. 30 (600 µm)1-1/4"
Your Price: $45.00
1714 Stainless Frame - Stainless ClothNo. 35 (500 µm)1-1/4"
Your Price: $45.00
1715 Stainless Frame - Stainless ClothNo. 40 (425 µm)1-1/4"
Your Price: $45.00
1716 Stainless Frame - Stainless ClothNo. 45 (355 µm)1-1/4"
Your Price: $45.00
1717 Stainless Frame - Stainless ClothNo. 50 (300 µm)1-1/4"
Your Price: $45.00
1718 Stainless Frame - Stainless ClothNo. 60 (250 µm)1-1/4"
Your Price: $45.00
1719 Stainless Frame - Stainless ClothNo. 70 (212 µm)1-1/4"
Your Price: $45.00
1720 Stainless Frame - Stainless ClothNo. 80 (180 µm)1-1/4"
Your Price: $45.00
1721 Stainless Frame - Stainless ClothNo. 100 (150 µm)1-1/4"
Your Price: $48.60
1722 Stainless Frame - Stainless ClothNo. 120 (125 µm)1-1/4"
Your Price: $48.60
1723 Stainless Frame - Stainless ClothNo. 140 (106 µm)1-1/4"
Your Price: $48.60
1724 Stainless Frame - Stainless ClothNo. 170 (90 µm)1-1/4"
Your Price: $52.90
1725 Stainless Frame - Stainless ClothNo. 200 (75 µm)1-1/4"
Your Price: $52.90
1726 Stainless Frame - Stainless ClothNo. 230 (63 µm)1-1/4"
Your Price: $54.80
1727 Stainless Frame - Stainless ClothNo. 270 (53 µm)1-1/4"
Your Price: $57.40
1728 Stainless Frame - Stainless ClothNo. 325 (45 µm)1-1/4"
Your Price: $57.40
1729 Stainless Frame - Stainless ClothNo. 400 (38 µm)1-1/4"
Your Price: $73.50
1730 Stainless Frame - Stainless ClothNo. 450 (32 µm)1-1/4"
Your Price: $79.50
1731 Stainless Frame - Stainless ClothNo. 500 (25 µm)1-1/4"
Your Price: $118.70
1732 Stainless Frame - Stainless ClothNo. 635 (20 µm)1-1/4"
Your Price: $136.20
