SKU
XSL-3-0-18-1C-F05
  • $5,036.20
  • $5,396.00 You Save 6.67%

Description

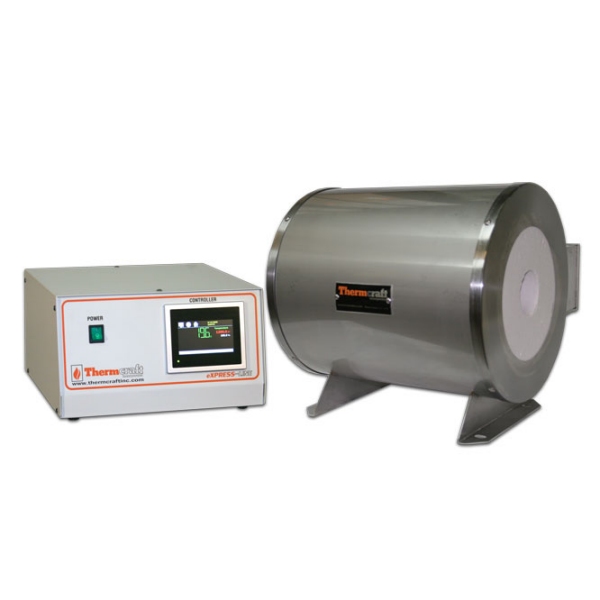

The Thermcraft XSL-3-0-18-1C-F05 solid tube furnace has a maximum temperature of 1,200°C (2,192°F), has a heated length of 3 x 18 inches and comes standard with their digital touch screen SmartControl system. These XSL solid tube furnaces will accept a process tube up to 2.75" (70 mm) and have a maximum operating temperature of 1200°C (2192°F). They have an interconnected control system and the furnace can be operated horizontally or vertically. The XSL solid tube furnaces have a continuous solid body design. Process tubes can be inserted through the furnace chamber before attaching end seals. These furnaces use ceramic refractory heating elements with embedded resistance wire. The tube adapters can be changed by removing the end caps so that multiple process tube sizes can be used with one furnace. Temperature uniformity is excellent due to the heavy ceramic refractory heating elements and continuous solid tube heated chamber. These furnaces ship two weeks after receipt of order.

  • 1,200°C maximum operating temperature
  • Ceramic refractory with embedded wire heating elements ensure excellent temperature uniformity
  • Thermcraft SmartControl touch screen PID control system
  • Accepts process tube outer diameters up to 2.75" (69mm)
  • Heated lengths up to 24" (609mm)
  • Includes 1 set of tube adapters sized to desired internal diameter
  • 10' (3m) interconnecting and power cables
  • Furnace and controller ship fully assembled and ready for connection to incoming power supply
  • Can be used in horizontal or vertical orientation
Technical Specifications:
Max Temperature1,200°C / 2,192°F
Heat Zones1
Heat Up Time65 minutes
Heated Length18 inches / 457mm
Max OD Process Tube2.7 inches / 70mm
Furnace External Dimensions (HxWxD)15 x 21 x 18 inches / 381 x 533 x 457mm
Controller External Dimensions (HxWxD)9 x 14 x 14 inches / 229 x 356 x 356mm
ControllerSmartControl with color 4.3" color touch screen interface with integrated LAN
Electrical230 Volts / 15 Amps
Max Power3440 Watts
Thermocouple TypeK
Weight71 lbs / 33 kg
