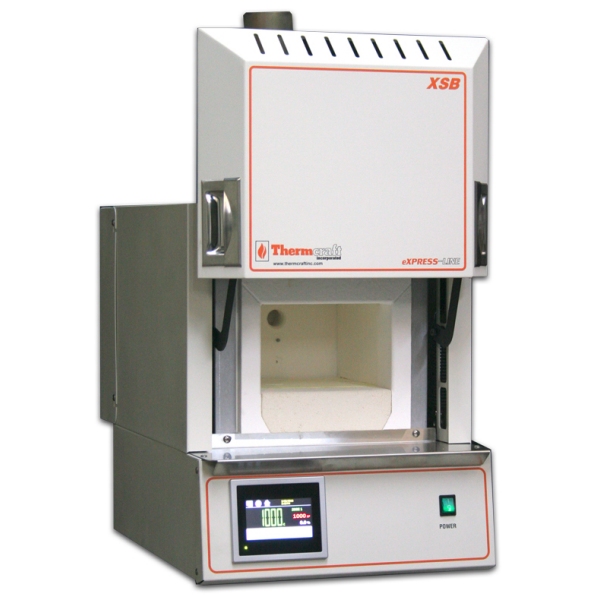

Thermcraft XSB-5-8-7-1C-F01 XSB Ashing Furnace with SmartControl

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

The Thermcraft XSB-5-8-7-1C-F01 XSB Ashing Furnace with SmartControl has a maximum temperature of 1,100°C and a internal chamber size of 5.1 x 7.9 x 6.7" (5L) and comes standard with a color touchscreen PID controller. The XSB ashing furnaces are designed to provide ideal conditions for complete combustion of test samples. They have a hinged vertical lift door that keeps the hot door insulation always facing away from the operator. A door safety switch interrupts power to the heating elements when the door is opened. These furnaces use wound wire heating elements that are protected by hard ceramic plates. The furnace chamber, heating elements, hearth plate and chamber threshold are designed to be easily replaced if they become worn out. An air gap between the heated chamber exterior and furnace exterior surface is designed to minimize the external surface temperature of the furnace.

• 1100°C maximum operating temperature
• Perfect for ashing petrochemicals, coal, food, plastics and other hydrocarbons
• Conforms to ASTM specifications D874, D482, D5184, D3174 and ISO specifications 3987, 6245, 10478, 1171
• Air is preheated before entering chamber
• Air inlet and exhaust chimney provide 6 air changes per minute.
• Optional air flow metering allows for 2-10 air changes per minute
• Thermcraft SmartControl touch screen PID control system
• Long life inconel sheathed Type K thermocouple
• Heated chamber volume up to 40L
• 10' (3m) power cables
• Furnace and controller ship fully assembled and ready for connection to incoming power supply
