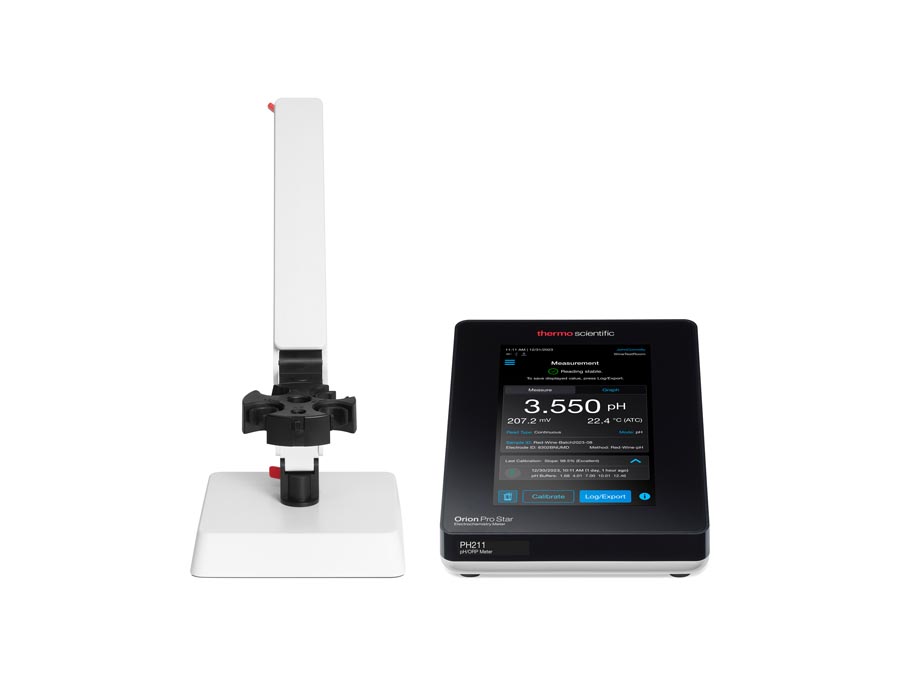

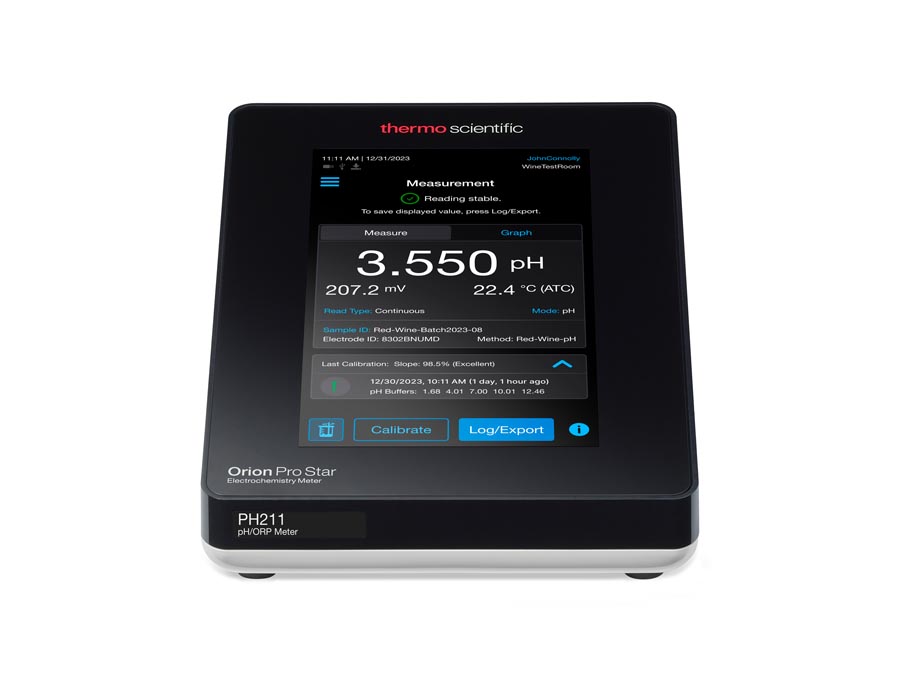

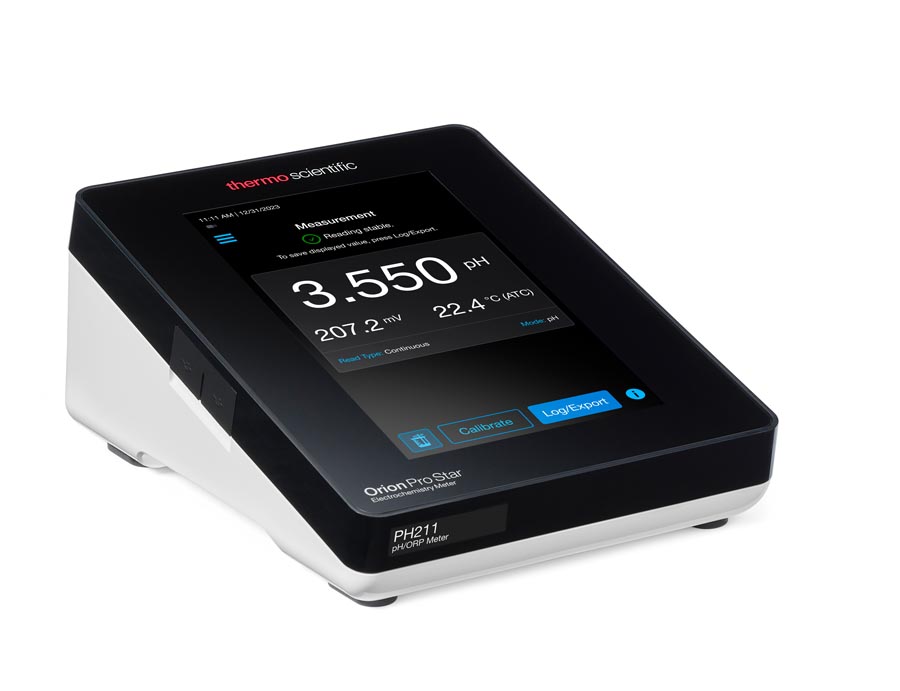

The Thermo Orion PSTAR2117 bench-top pH/ORP meter kit comes with the 8107BNUMD pH electrode. The Thermo Scientific Orion Pro Star PH211 pH/ORP bench meters are designed to provide accurate, reliable electrochemistry testing. Featuring an intuitive interface, enhanced data reporting and robust functionality, the Orion Pro Star PH211 meters deliver advanced performance in a modern and simplified package. The Orion Pro Star meters feature a wide range of parameter capabilities.
| pH Range | -2.000 to 20.000 pH |
|---|---|
| Resolution | 0.1, 0.01 or 0.001 pH |
| Relative accuracy | ± 0.002 pH |
| Calibration points | 1 to 5 points |
| Calibration method | Automatic buffer recognition, manual entry option |
| Calibration buffer sets | USA (1.68, 4.01, 7.00, 10.01, 12.46) DIN (1.68, 4.01, 6.86, 9.18, 12.46) Pure Water Buffers (4.10, 6.97, 9.15) Standard (1.00, 3.00, 6.00, 8.00, 10.00, 13.00) Up to 5 custom buffers |
| Slope type | Linear or segmented |
| Calibration summary | Slope and Eo offset, option to view as point-to-point graph |
| Isopotential point | 7.000, user adjustable |
| Input impedance | >10^12 ohms mV |
| mV Range | -2000.0 to 2000.0 mV |
| Resolution | 0.1 mV |
| Relative accuracy | ± 0.2 mV or ±0.05 % of the reading, whichever is greater |
| Relative mV / ORP Range | -2000.0 to 2000.0 mV |
| Resolution | 0.1 mV |
| Relative accuracy | ± 0.2 mV or ±0.05 % of the reading, whichever is greater |
| Calibration points | 1 point |
| Calibration method | ORP or EH |
| Calibration offset | ±250 mV |
| Temperature Range | -30.0 to 130.0°C, -22.0 to 266.0°F |
| Resolution | 0.1°C, 0.1°F |
| Relative accuracy | ±0.3°C, ±0.5°F |
| Calibration points | 1 or 2 points |
| Offset adjustment | Up to ±5.0°C |
| Temperature source | Automatic with ATC sensor, ambient with built-in meter temperature sensor or manual entry Measurement Functions |
| Measurement channels | 1 |
| Measurement parameters | pH, mV or ORP with temperature |
| Read types | Continuous, Auto-Read or Timed |
| Timed reading intervals | 3 seconds to 2 hours |
| Measurement layout | Customizable options for basic, advanced or user-defined |
| Measurement stability | Automatic, fast, medium or slow |
| Sample ID | Auto-incremental or manual, up to 25 alphanumeric characters |
| Electrode ID | Up to 20 alphanumeric characters |
| Graph / chart view | Single parameter with temperature |
| Set value alarm | 1 high and 1 low value per parameter |
| Last calibration details | Calibration summary with date and time Meter Features |
| Display | 7" high resolution color graphic LCD |
| Touchscreen type | Capacitive with lab glove compatibility |
| Onscreen prompts | On-demand information screens; onscreen user guide and step-by-step calibration guidance |
| Time and date | Yes |
| Time format | 12 hour or 24 hour |
| Date format | Selectable as MM-DD-YYYY, DD-MM-YYYY or DD-MMM-YYYY |
| Instrument name | Up to 20 alphanumeric characters |
| Secure mode | 3 administrator and 30 user accounts with individual password protection, custom user access permissions and audit trail |
| Username | Optional, up to 20 alphanumeric characters |
| Methods | 10 |
| Data outputs | USB flash drive, computer or compact ink printer |
| Data output format | Report, CSV or print |
| Data log | 10,000 data sets with time and date |
| Data log export | Customizable options for basic (short), intermediate, advanced or all data |
| Calibration log | 20 per parameter with time and date |
| Calibration log export | Customizable options for basic (short), intermediate, advanced or all data |
| Calibration reminder | 1 alarm per parameter |
| Calibration alarm interval | 1 hour to 30 days or off |
| Audible signal | User set for button press, notifications and alarms, stable reading |
| Maintenance Reminder | Up to 5 electrode maintenance reminders and up to 5 solution maintenance reminders |
| Sleep mode | Selectable time interval of 5, 10, 20, 30, 60 minutes or off |
| Meter tests | Self-test, stability test and pH electrode check |
| Meter tours and guides | Calibration modes, measurement mode, meter connections, electrode stand assembly and pH electrode maintenance |
| Stirrer probe inputs | 1 |
| Stirrer probe speeds | 5 selectable speeds from 250 RPM to 3600 RPM |
| Electrode inputs | BNC, 8-pin MiniDIN (ATC), reference pin-tip |
| Data outputs | 1 USB-A port for USB flash drive; 1 export port for computer or compact ink printer |
| Accessory input | 1 USB-A port for USB mouse, USB keyboard or USB barcode scanner |
| Memory | Non-volatile, to preserve data and settings in case of power loss |
| Display languages | Chinese, English, French, German, Italian, Japanese, Korean, Portuguese or Spanish |
| Meter warranty | 2 years |
| Certifications | CE, TUV 3-1, FCC Class A |
| Enclosure | IP-54 |
| Power | 100-240 VAC, 50-60Hz, 9 DC adapter, 2.0A |
| Dimensions (L x W x H) | 218.9 mm x 153.2 mm x 91.62 mm, 8.62" x 6.03" x 3.61" |
| Weight | 1.00 kg, 2.20 lbs. |

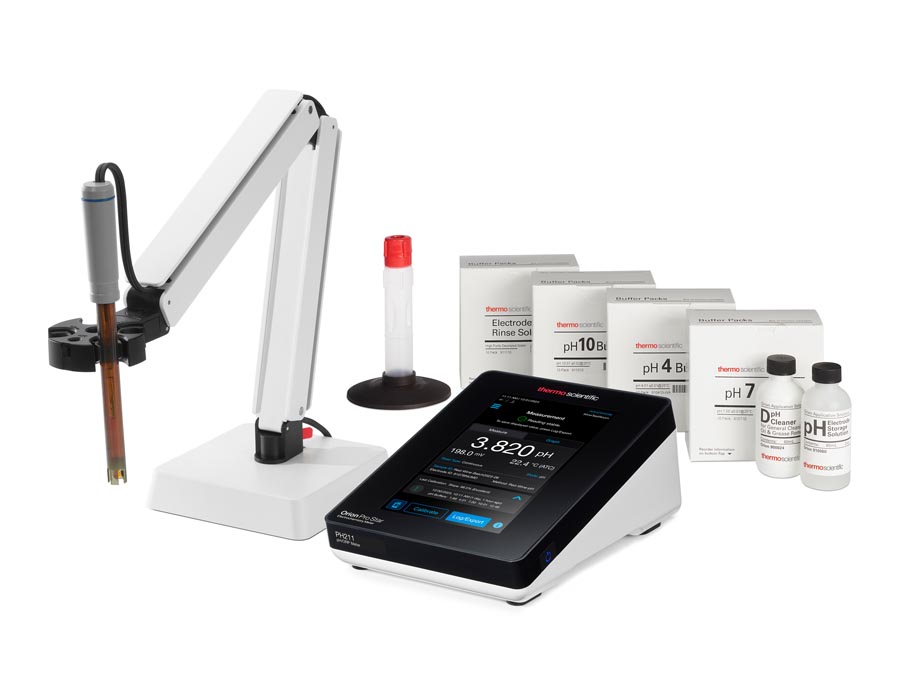

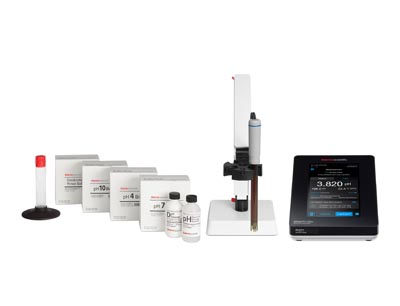

| Includes | Orion Pro Star PH211 pH/ORP bench meter low maintenance kit; includes meter with stand; ROSS Ultra Triode gel-filled epoxy-body pH/ATC electrode; pH 4, 7, 10 buffers; rinse solution; storage solution; cleaning solution; pH electrode storage holder |
