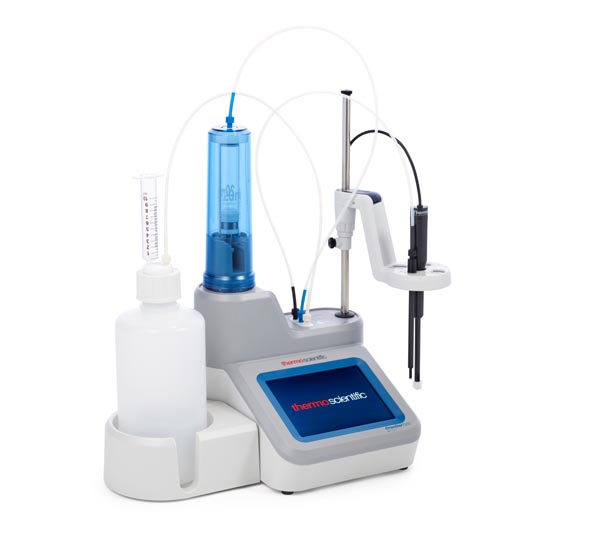

The Thermo Scientific Orion START9300 Ion titrator is the base unit only and does not include electrodes. The Thermo Scientific Orion Star T930 ion titrators are designed to increase your laboratory productivity by automating titrations. Our core electrochemistry technology is integrated with a state-of-the-art reagent dispensing system to create modern, simplified automated titrators designed to make performing titrations easier, more reliable and more reproducible than manual titrations. Titration techniques include equivalence point titrations and preset mV endpoint titrations plus multiple known addition (MKA) mode. Using MKA mode, the titrator performs an automated calibration and calculation of sample concentration by adding aliquots of standard to sample, removing the need for a separate calibration and minimizing matrix effects.
| Titration Technique | Equivalence point or preset endpoint |
|---|---|
| Equivalence Points | 1 or 2 |
| Preset Endpoints | 1, 2 or 3 |
| Titration Types | Direct or back titration |
| Blank Options | Fixed value or variable value using titration |
| Cycles Per Titration Run | Up to 5 cycles with option to exclude cycles from average results and RSD calculations |
| Titrant Determination | Standardization titration or manual concentration input |
| Titration Process Control | Routine, quick, careful or user defined |
| Titration Precision | ±0.5 % RSD, dependent on environment and handling conditions |
| Stirrer Probe Speeds | 5 selectable speeds, 250 to 3700 RPM |
| Sample ID | Auto-incremental, manual or off |
| Titration Setup Wizard | Yes, using Start a New Titration workflow |
| Methods | Up to 10 customizable methods with optional password protection |
| Methods Transfer | Import/export via USB flash drive, summary to computer software or compact printer |
| Data Logs | Sample titration, titrant standardization, calibration, direct measure - 100 data sets each |
| Data Log Export | CSV or Report (PDF) file, short or long format |
| Time and Date | Yes, with nonvolatile battery backup |
| Direct Measure Mode | Ion concentration with mV and temperature |
| ISE Range Resolution Relative Accuracy | 0.0001 to 19,990 0.0001 minimum, 1 to 4 significant digits (user selectable) ±0.2 mV or ±0.05% of reading, whichever is greater |
| ISE Calibration Mode | 1 to 5 point |
| mV Range Resolution Relative Accuracy | -2000.0 to +2000.0 mV 0.1 mV ±0.2 mV |
| Temperature Range Resolution Relative Accuracy | -5.0 to 100.0°C; 23.0 to 212°F 0.1°C; 0.1°F ±0.2°C |
| Temperature Input | Manual or automatic with optional 1 point ATC probe offset calibration |
| Display Type | 5.7" color capacitive touchscreen, 640 x 480 resolution, with lab glove compatibility |
| Display Backlight | Yes, adjustable |
| Languages | Chinese, English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
| Titrator Setup Wizard | Yes |
| Audible Notifications | Titration Cycle Complete, Maximum Titrant Volume, Data Log Full, Calibration Due, Maintenance Reminder |
| Updateable Firmware | Yes, using USB flash drive |

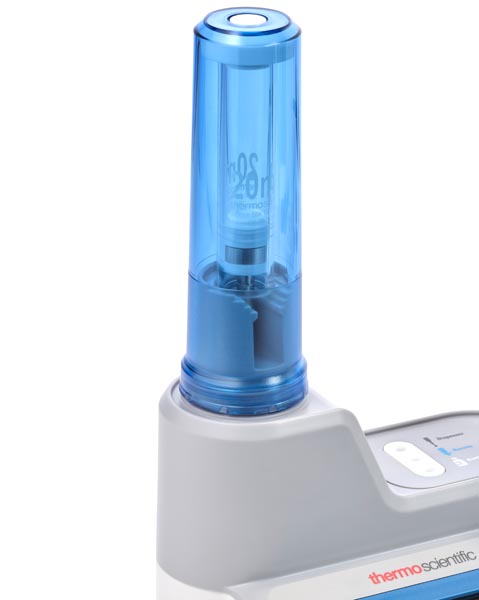

| Burette | Sizes 10 mL, 20 mL (included), 50 mL |
| Burette Resolution | Advanced micro-step technology provides 25,600 micro-steps per motor revolution for smooth and precise burette positioning (2 million micro-steps over full burette stroke range) |
| Burette Dosing Accuracy | Meets ISO8655-3 requirements |
| Burette Functions | Automatic rinse cycles for flushing and discrete dispense volume with continuous option |
| Certifications | CE, TUV 3-in-1, FCC, EN/EIC61326-1, IEC 61010, IP-51 |
| Dimensions (L x W x H) | 10 x 16 x 14 inches / 25.4 x 40.6 x 35.6 cm |
| Weight | 12.5 lbs / 5.67 kg |
| Power Requirements | 100 to 240 V, 50/60 Hz |
| Warranty | 1 year (titrator only, electrodes have their own warranty) |
| Includes | Orion Star T930 ion titrator 20 mL burette stirrer probe dispenser probe standard tubing kit 1 L plastic bottle GL38 bottle cap with drying tube computer cable literature on USB drive 110-240 V power supplies |
