Description

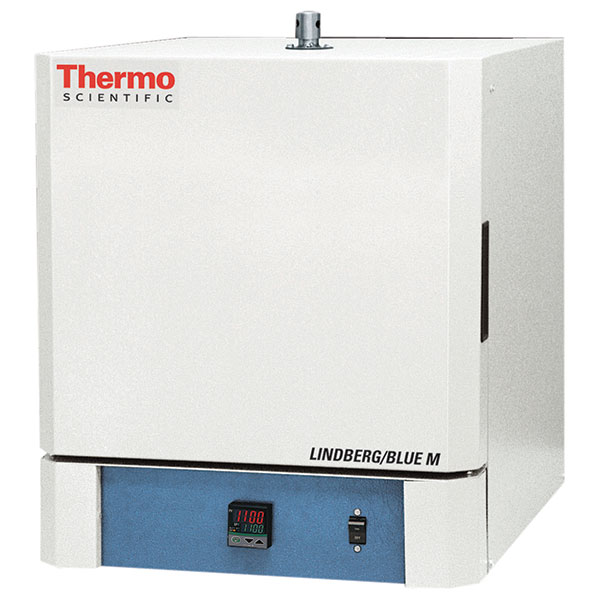

The Thermo Scientific Lindberg/Blue M BF51728C Muffle Furnace is a high-performance solution for laboratories seeking precision and reliability. With a 17-liter chamber and a maximum temperature of 1200°C, this muffle furnace is optimized for sintering, heat treating, and quantitative analysis. Its LGO heating elements deliver rapid, efficient heat transfer, while Moldatherm insulation ensures uniform temperatures and energy savings. The programmable controller supports multi-segment profiles, providing flexibility for complex thermal cycles. A dual-LED display offers real-time temperature monitoring, ensuring accuracy. Safety features include over-temperature protection and a side-opening door to minimize heat exposure. Built for durability, this furnace is ideal for labs requiring consistent, high-quality results in a compact design.

  • Controlled heat-up rate eliminates thermal shock to materials
  • Quick heat-up and cool-down rates
  • Energy efficient Moldatherm insulation with embedded heating elements
  • Unique double-wall construction minimizes exterior surface temperatures for operator safety and energy efficiency
  • Side-hinge door for convenient operation and full chamber access
  • Long-life Type "K" thermocouple
  • Air vent (1" dia., top) and air inlet (0.375" dia., rear) for inert atmosphere exchange. Will experience some leakage at door
  • Removable and replaceable Moldatherm hearth plate supports load and prevents damage due to spillage
  • Main power on/off switch on control panel
  • Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user
Technical Specifications:
Max Temperature 1100°C (2012°F)
Volume 1.5 cu ft (42.5 L)
Outside Dimensions 28 x 30 x 24" (71.1 x 76.3 x 60.0 cm)
Chamber Dimensions 12 x 18 x 12" (30.5 x 45.7 x 30.5 cm)
Power 208/240V / 25A / 5600W
Temperature Control Digital, Single Setpoint Controller
Temperature Range 100°C to 1100°C / 212° to 2012°F
Display LED; temperature and setpoint in °C or °F
Hertz 50/60
Shipping Weight 185 lb / 84 kg

Ideal for:

  • Electronics R&D Labs
  • Geological Research
  • Industrial Material Testing
  • Academic Science Departments
  • Polymer Analysis Labs

Frequently Asked Questions:

Q. What is the chamber size of the BF51728C?
A. It has a 17-liter chamber, suitable for medium to large samples.

Q. How does the furnace ensure uniform heating?
A. Moldatherm insulation and LGO heating elements maintain consistent temperatures.

Q. Is it safe for operator use?
A. Yes, it includes over-temperature protection and a side-opening door.

Q. What is the maximum temperature?
A. The furnace reaches up to 1200°C, ideal for diverse applications.
