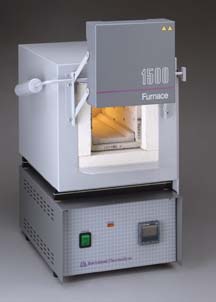

Thermo Scientific Thermolyne FD1540M Muffle Furnace

Thermo Scientific Thermolyne FD1540M Muffle Furnace
  • Model #: FD1540M
  • Your Price: $3,361.10
    List Price: $4,674.00

Perform ultra-high temperature applications with the Thermo Scientific™ Thermolyne™ Industrial Benchtop Muffle Furnace, which reaches a maximum temperature of 1200°C. Includes multiple safety features and choice of two temperature-control options; additionally, heavy-duty firebrick insulation surrounds the opening for added durability.

Product Description

  • Counter-weighted door swings upward, directing heat away from operator
  • Heavy-duty firebrick insulation surrounds chamber opening for added durability
  • Four individual embedded elements in special refractory cement permit excellent heat distribution in the chamber
  • Door safety switch protects operator by removing power to the heating elements upon opening the door
  • Adjustable Alarm or Over Temperature Protection (OTP) setting can be used to protect the furnace or loaded chamber from excessive heat
  • Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition
  • The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices
  • Power cord supplied


  • C1 Digital programmable control with one stored program of 8 segments. The furnaces that use this control also utilize a mechanical Over Temperature Protection relay
Technical Specifications:
Max Temperature 1200°C (2192°F)
Volume 0.08 cu ft (2.2 L)
Outside Dimensions (WxHxL) 11 x 16.5 x 18" (27.9 x 41.9 x 45.7 cm)
Chamber Dimensions (WxHxD) 4 x 3.75 x 9" (10.1 x 9.5 x 22.8 cm)
Power 240V / 9.30A / 2230W
Temperature Control Group C1
Approvals CUL, UL
