The Thermo Scientific Heratherm ECG750 CO2 chamber has a capacity of 26.5 cubic feet (750 liters) with a temperature range of 0 to 70°C, humidity range of 10 to 90% relative humidity and comes with a glass door. Precisely control the essential parameters of your distinct cell growth or CO2 testing conditions - active humidity controls the incubation environment with accuracy.
- Precisely control the essential parameters of your distinct cell growth conditions - active humidity controls the incubation environment with accuracy.
- Broad relative humidity range to cover many applications, including humidity levels below ambient.
- Environmentally friendly water-efficient humidification system.
- Minimal condensate in standard applications.*

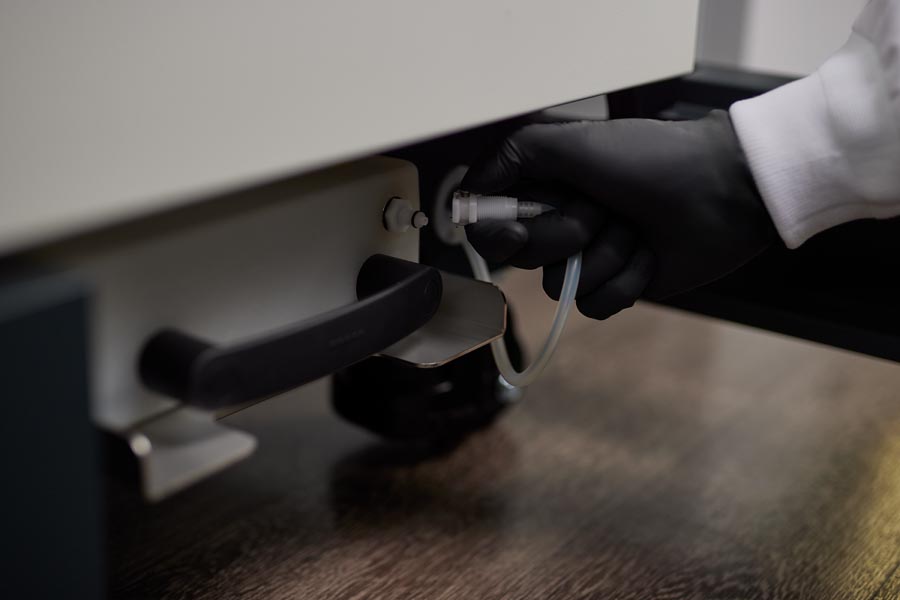

- Integrated water tank; fixed water connection for in-house purified water option available.
- Energy-efficient Peltier technology supports temperature stability and uniformity with lower energy usage compared to traditional compressors and without hazardous refrigerant.
- Two access ports for independent data capture, and internal documentation of set and actual parameter values, along with event log to meet 21 CFR Part 11 requirements for process documentation.
- Data retrieval via USB stick, Ethernet connection, or Thermo Cloud via OPC-UA standard.
- Sample and process protection: Assign personalized access with user IDs; restrict access with standard door lock, or optional automated door lock; various alarm options to prevent operator of process issues.
- Intuitive touchscreen interface with easy programmability of temperature cycles and process duration.
- Simplified setup with no technician required; install using standard power cord.
- IQ/OQ qualifications and other services available; visit thermofisher.com/chamberservice.

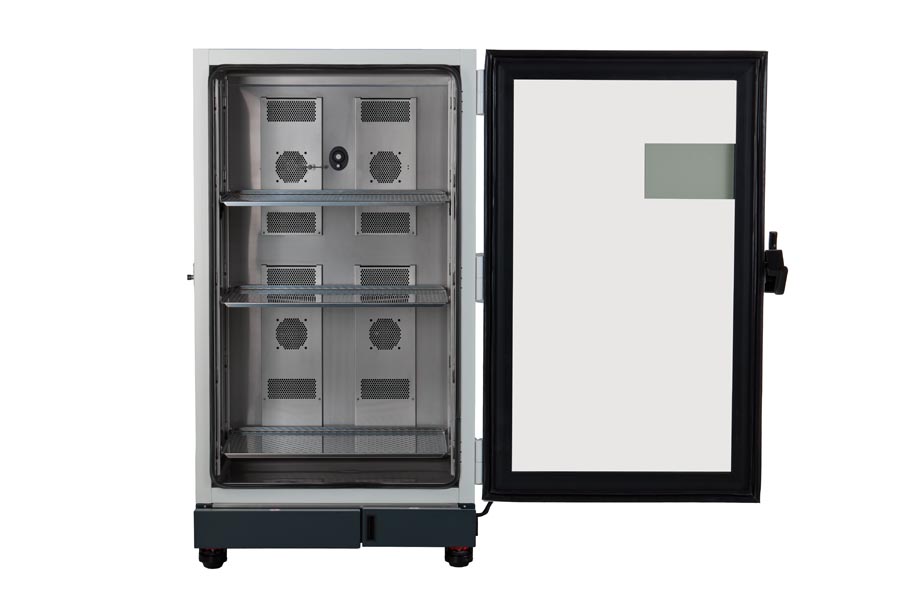

- Inner glass door keeps environment stable, even when opening outer door. Glass door also available.
- Rounded corners and removable shelving offer easy cleaning to help prevent cross-contamination.
- 2 year warranty
Technical Specifications:| Chamber size | 750 Liters (26.5 cu. ft.) |
|---|
| Door type | Exterior glass door |
|---|
| Temperature range | 0 – 45°C |
|---|
| Temperature increments | 0.1°C |
|---|
| Humidity range at 37°C | 10 – 90% RH |
|---|
| Humidity increments | 0.1% 0.1% |
|---|
| Water consumption | 0.2 – 1 L / day |
|---|
| CO2 range | 0 - 20% v/v |
|---|
| CO2 increments | 0.01 |
|---|
| Voltage, power | 100 – 240 V, 50/60 Hz, 1400 W |
|---|
| Power plug | Standard plug |
|---|
| Energy consumption | 3 to 15 kWh per day |
|---|
| Shelves (std. / positions) | 3 / 36 |
|---|
| Shelf construction | Perforated stainless steel, Type 1.4301 / AISI 304 |
|---|
| Internal dimensions (WxHxD) | 33.07 x 57.09 x 24.8 inches (840 x 1450 x 630 mm) |
|---|
| Exterior dimensions (WxHxD) | 42.52 x 72.24 x 34.84 inches (1080 x 1835 x 885 mm) |
|---|
| Shipping weight | 820 lbs (372 kg) |
|---|
| Certification | UL, CE UL, CE |
|---|
