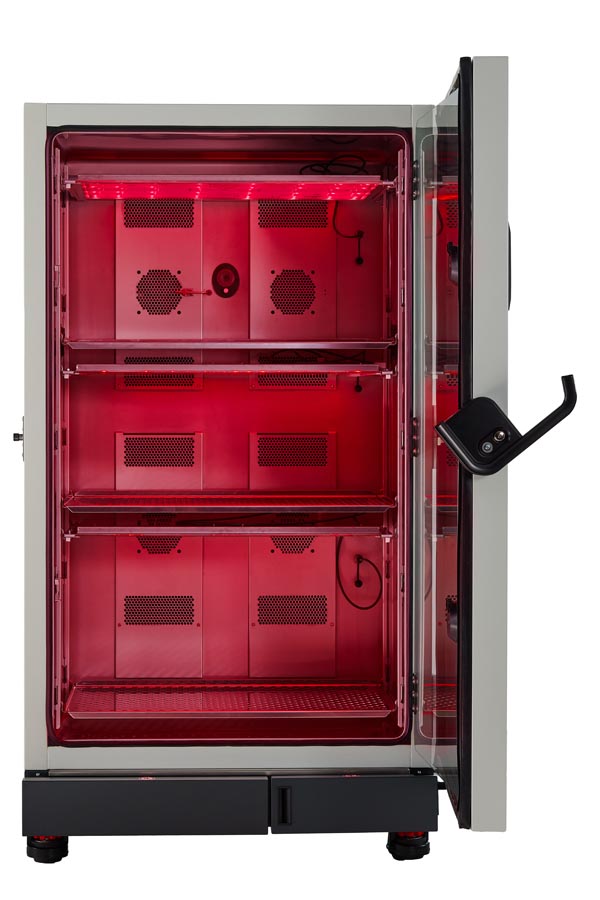

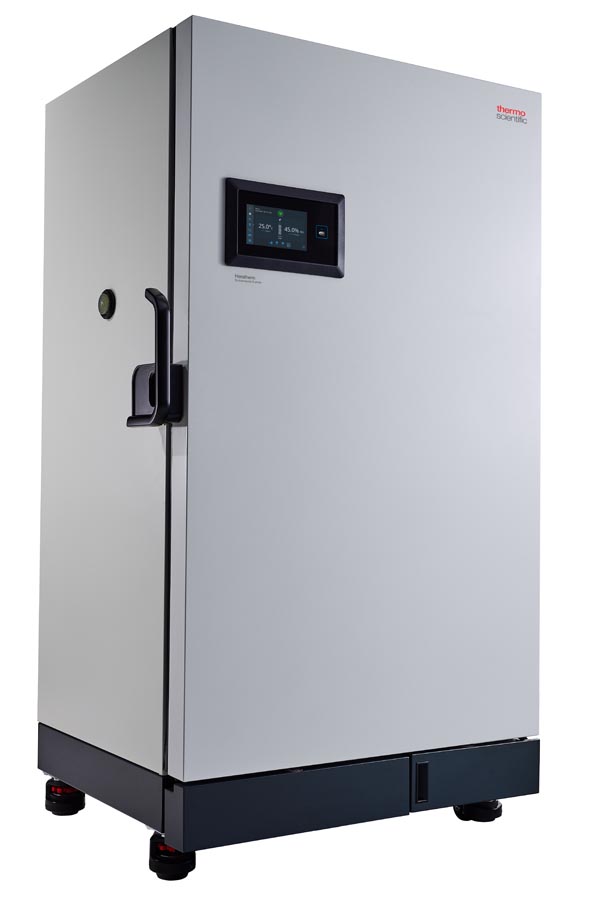

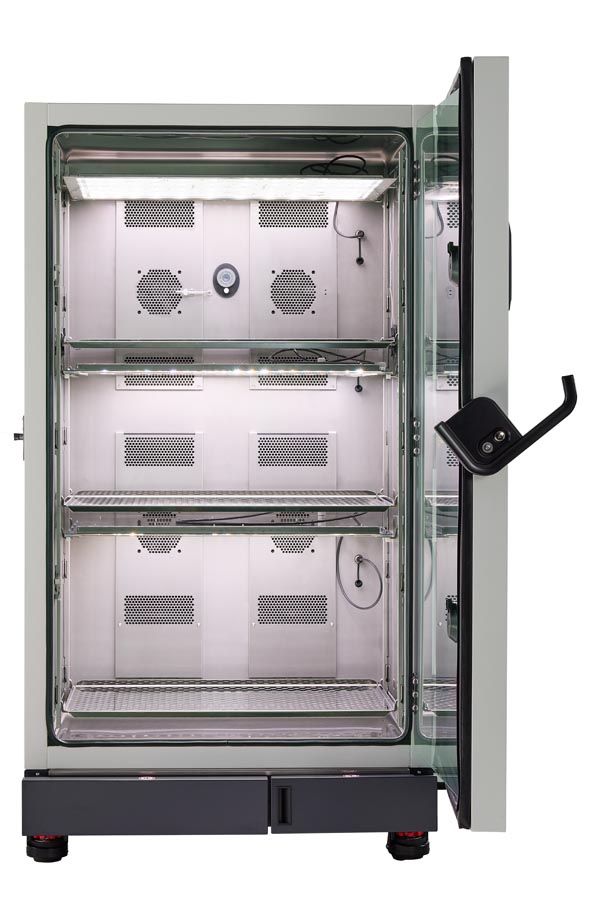

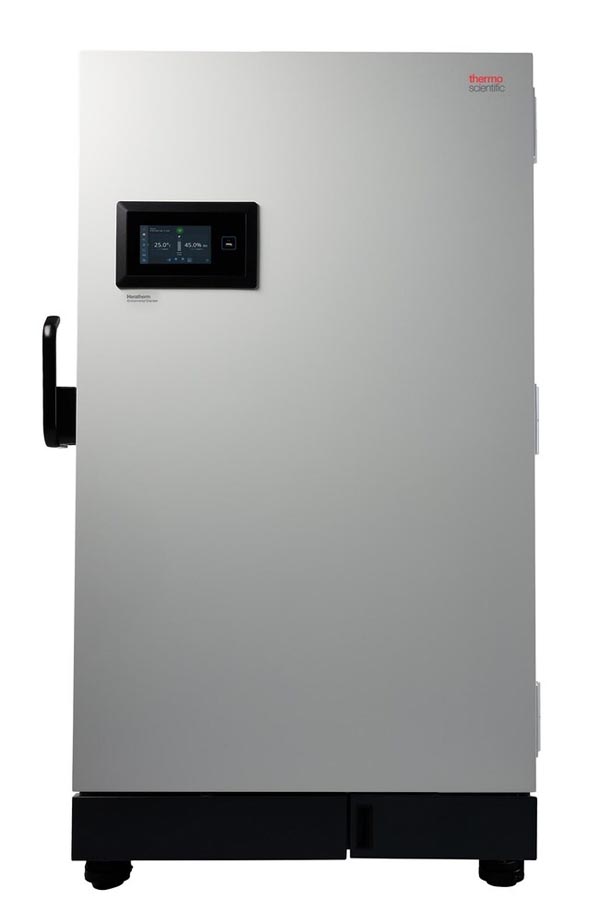

The Thermo Scientific Heratherm ELS750 light chamber has a capacity of 26.5 cubic feet (750 liters) with a temperature range of 0 to 70°C (15 - 45°C with light on),humidity range of 10 to 90% relative humidity and comes with a solid door. Get extensive environmental control with versatile LED light distribution settings along programmable temperature and humidity ranges.
- Accurate and even light distribution throughout chamber.
- Increased energy efficiency and sustainability with long-lasting LED lighting, compared to florescent bulbs - no hazardous metal mercury.
- Programmable range of light color and intensity available across red, blue and white color spectrums, and UV channel on ICH mode.
- Fits up to 3 light modules, sold separately as accessories.
- Broad relative humidity range to cover many applications, including humidity levels below ambient.
- Environmentally friendly water-efficient humidification system.
- Minimal condensate in standard applications.
- Integrated water tank; fixed water connection for in-house purified water option available.
- Energy-efficient Peltier technology supports temperature stability and uniformity with lower energy usage compared to traditional compressors and without hazardous refrigerant.
- Two access ports for independent data capture, and internal documentation of set and actual parameter values, along with event log to meet 21 CFR Part 11 requirements for process documentation. note: Factory-installed electrical sockets not available for this model.
- Data retrieval via USB stick, Ethernet connection, or Thermo Cloud via OPC-UA™ standard.
- Sample and process protection: Assign personalized access with user IDs; restrict access with standard door lock, or optional automated door lock; various alarm options to prevent operator of process issues.

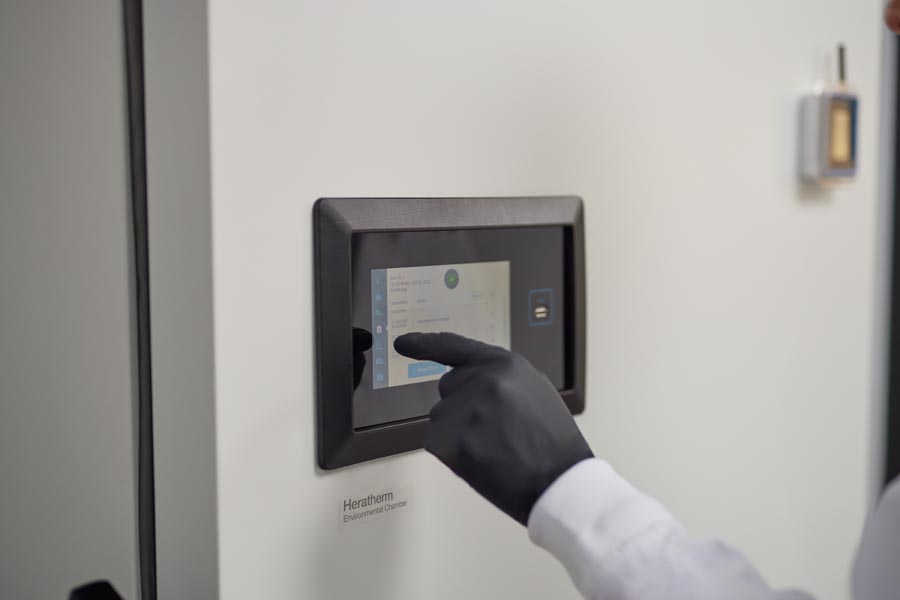

- Intuitive touchscreen interface with easy programmability of temperature cycles and process duration.
- Simplified set-up with no technician required; install using standard power cord.
- IQ/OQ qualifications and other services available; visit thermofisher.com/chamberservice.
- Additional features: Inner glass door keeps environments stable, even when opening outer door. Rounded corners for easy cleaning if space allows.
- 2 year warranty
Technical Specifications:Chamber size | 750 Liters (26.5 cu. ft.) |
---|
Door type | Solid door with inner glass door |
---|
Temperature range | 0 – 70°C |
---|
Temperature range with light | 15 – 45°C |
---|
Temperature increments | 0.1°C |
---|
Humidity range at 37°C | 10 – 90% RH |
---|
Humidity increments | 0.1% 0.1% |
---|
Water consumption | 0.2 – 1.5 L / day |
---|
Number of light modules | 1 to 3 |
---|

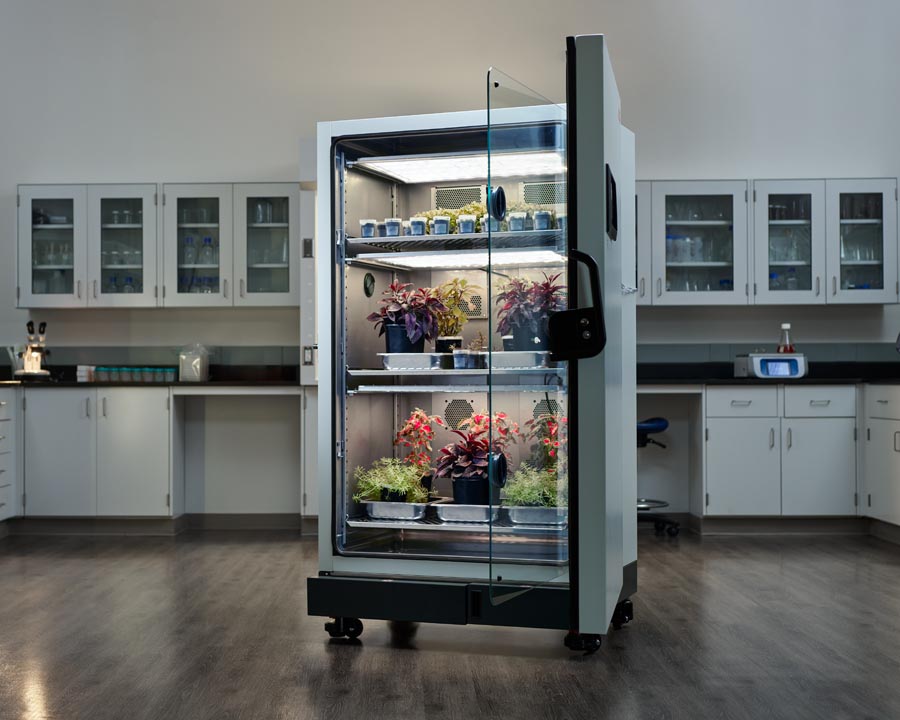

Choice of light modules | ICH, plant growth/animal hatching/testing |
---|
Voltage, power | 100 – 240 V, 50/60 Hz, 1650 W |
---|
Power plug | Standard plug |
---|
Energy consumption | 3.5 to 21 kWh per day |
---|
Shelves (std. / positions) | 13210 |
---|
Shelf construction | Perforated stainless steel, Type 1.4301 / AISI 304 |
---|
Internal dimensions (WxHxD) | 33.07 x 57.09 x 24.8 inches (840 x 1450 x 630 mm) |
---|
Exterior dimensions (WxHxD) | 42.52 x 72.24 x 34.84 inches (1080 x 1835 x 885 mm) |
---|
Shipping weight | 840 lbs (381 kg) |
---|
Certification | UL, CE UL, CE |
---|
