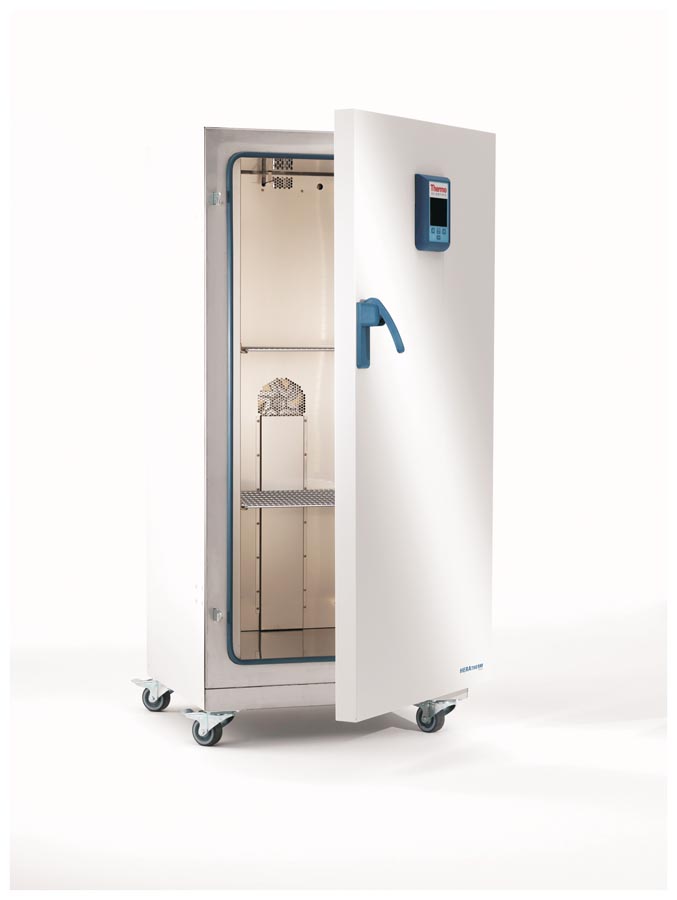

Thermo Scientific Heratherm OGS750 51029339 Gravity Convection Oven

Email a Friend Add to Favorites
SKU
OGS750
  • $7,812.00
  • $10,400.00 You Save 24.88%

Description

Heratherm large capacity ovens have been designed with your need for larger samples or high sample volume in mind. The General Protocol ovens provide high capacity for day-to-day drying and heating applications.

Features and Benefits

  • Gravity convection technology for gentle heating and drying
  • Low overall energy consumption: 23% energy savings compared to conventional ovens*
  • Great footprint/volume ratio and optimal use of chamber with flexible shelving system
  • Corrosion-resistant stainless steel inner chambers (AISI 430)
  • Operating from 10°C above ambient temperature up to 250°C
  • Protect delicate samples while still offering a uniformity of ± 3.0°K and temperature stability of 0.5°K at 150°C
  • “Plug and play” for 208/240V models with standard Nema 6-20P plug: no special hard-wiring necessary

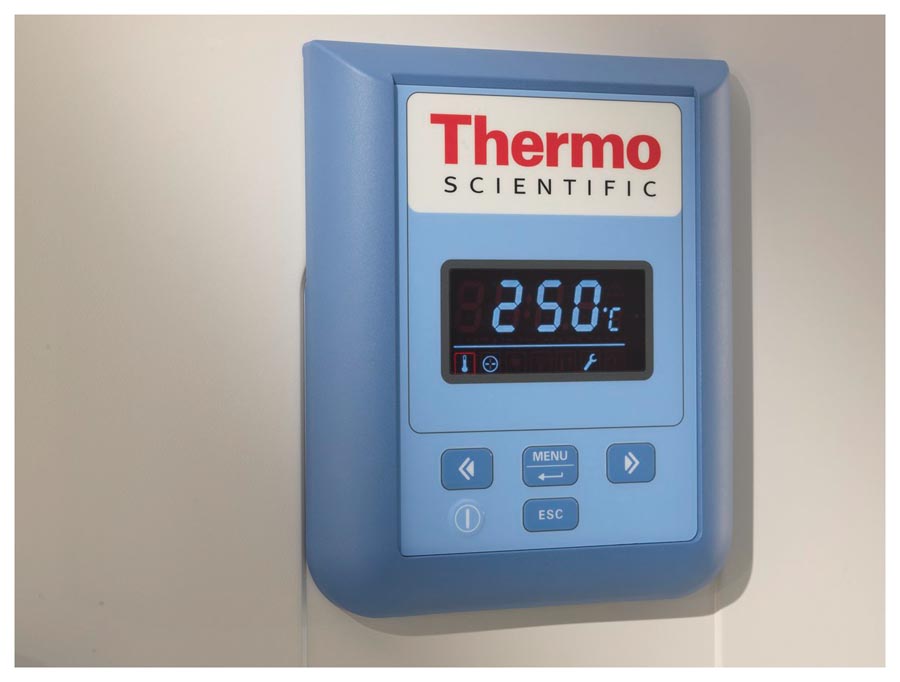

  • Intuitive user interface and easy-to-read display
  • Lockable casters for mobility and easy set-up in your lab
  • 2 year warranty
Technical Specifications:
Max Temperature 250°C (482°F)
Volume 27.3 cu ft (774 L)
Outside Dimensions (WxHxD) 49.6 x 60.8 x 30.3" (126.1 x 154.5 x 77 cm)
Chamber Dimensions (WxHxD) 39.5 x 51.5 x 23.2" (100.4 x 130.7 x 59 cm)
Power 208-240V / 13.5A / 3240W
Convection Technology Gravity convection
Controller Microprocessor control with vacuum fluorescent display
Temperature Range ambient +10°C - 250°C
Spatial temperature deviation ±3.7°C
Temperature deviation over time ±0.5°C
Footprint 9.8 sq. ft. / 0.91 m2
Chamber Volume 27.3 cu. ft. / 774 L
Rated voltage / frequency 208-240V / 60Hz
Rated power / max. current 3240 Watts / 13.5 Amps
Number of shelves 2 supplied / 39 max
Max. Shelf Load 88 lbs (40kg)
Net Weight 401 lbs (182kg)
Energy consumption at 37°C 800 Watts
