Description

DISCONTINUED BY MANUFACTURER, PLEASE CALL FOR ALTERNATIVES

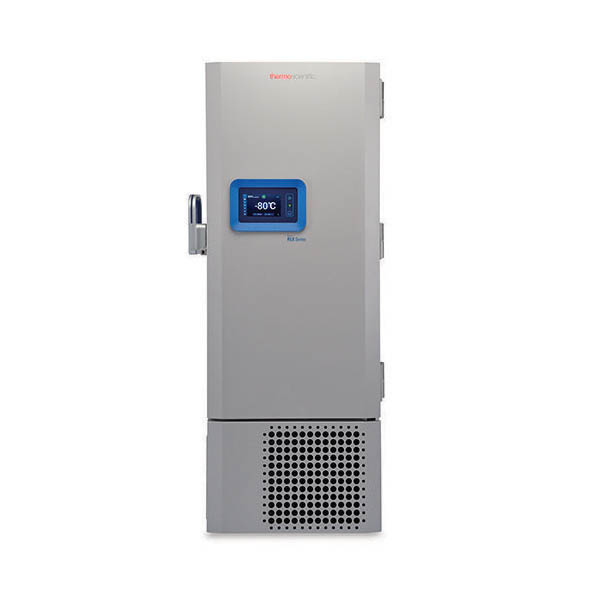

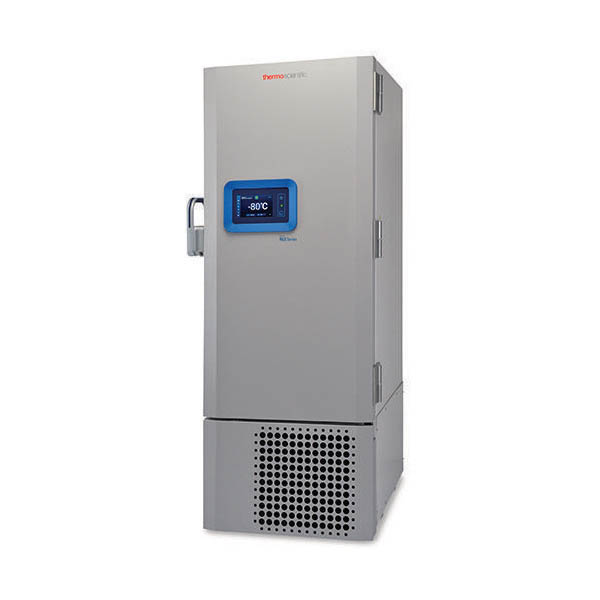

The Revco RLE40086D ultra-low temperature upright freezer has a capacity of 19.4 cubic feet (holds 400 2" cryoboxes) with a temperature range of -50°C to -86°C and runs on 208/230V (60Hz) power. Revco RLE -80°C ultra-low temperature freezers feature a new touch screen interface with data logging while providing dependable sample storage with in a new energy saving design. The new capacitive touch screen interface is usable even while wearing latex gloves and provides data logging and temperature mapping without a chart recorder. Stored data is downloadable via a standard USB interface. Sample protection is ensured with a low peak temperature variation and fast door opening recovery. The RLE series is also energy efficient and uses as low as 9.4 kWh/day. Natural hydrocarbon refrigerant and water-blown foam insulation is SNAP compliant.

  • Low peak variation helps ensure sample protection throughout entire cabinet
  • Fast door opening recovery in as little as 13 minutes
  • 0.93°C steady-state temperature variation over time
  • Long warm-up time from -80°C to -50°C in 5 hours
  • Water-cooled condenser option: reduces heat output by almost 60% (not available on RLE30086)
  • Uses as low as 9.4 kWh/day, depending on size
  • Less heat emission lowers HVAC costs
  • SNAP compliant, natural hydrocarbon refrigerants
  • Environmentally-friendly, water-blown foam insulation is compliant with SNAP
  • Manufactured in an award-winning, zero-waste to landfill facility
  • Quiet enough to reside directly in the laboratory. At just 50 dBA, the sound is comparable to a home refrigerator.
  • Easy-to-use set-up wizard, event log, temperature mapping and data downloads
  • Capacitive touch even when using latex gloves
  • Touch-screen datalogging and temperature mapping eliminates the need for a separate chart recorder
  • Built-in USB port for exporting data
  • Advanced security features: alarm settings, padlock-compatible doors and optional access card entry
  • Ergonomic design: comfortable door handle, eye-level touch-screen and shelf-level placement that do not require floor-level loading of racks

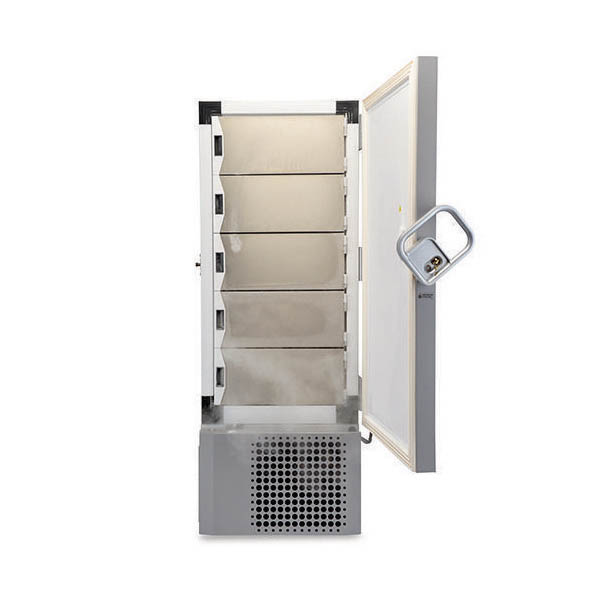

  • Five inner doors minimize ambient temperature during sample retrieval
  • Manufactured in an award-winning, zero-waste to landfill facility
Technical Specifications:
Capacity, Volume19.4 Cu. Ft. (549 Liters)
Capacity, Shelf Weight165 lbs (75kg)
Temperature Range-50°C to -86°C
TypeUltra Low Freezer, Upright
Certifications/CompliancecULus
Electrical Requirements208-230V / 60Hz
Amps / Breaker (Plug)5.9/15 (NEMA 6-15)
Display/InterfaceDigital Color Touch-Screen LCD
Door Style1 outer, 2 inner
Interior Dimensions (HxWxD)51.2 x 23.1 x 28.3 inches (130.1 x 58.8 x 71.9 cm)
Exterior Dimensions (HxWxD)78 x 28.3 x 37.8 inches (198.1 x 71.9 x 96 cm)
Holds400 2 inch boxes / 300 3 inch boxes
Smart View CompatibleYes
Energy Consumption9.8 Kw-Hr/Day (Standard Mode)
Peak Variation From -80°C Setpoint+8.7°C / -1.2°C
Door Opening Recovery15 minutes
Warm Up Time (-80°C Deg To -50°C)262 minutes
Noise Level52 dBA
RefrigerantR290 in First Stage, R170 With R290 Mix in Second Stage (SNAP compliant)
DefrostManual
Shipping Wt687 lbs (312 kg)
