Description

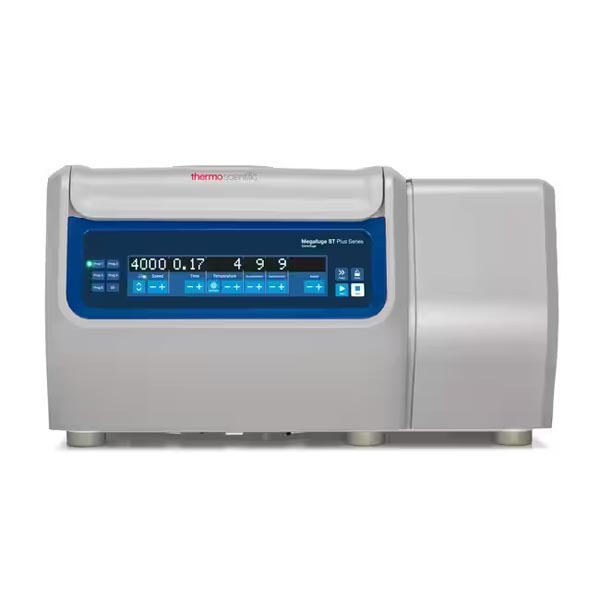

The Thermo Scientific ST1R Plus refrigerated megafuge (75016010) cell culture package comes with the TX-400 swinging bucket rotor. The Thermo Scientific Megafuge ST1 series centrifuges feature ergonomic design, standard high contrast user interface for up to 6 saved programs with simple push-button operation for routine applications. With capacity up to 1.6L, including 76x5/7 ml blood tubes and 16x50 ml conical tubes, Auto-Lock for fast rotor exchange and 12 available rotors to choose from.

  • Intuitive controls simplify operation and provide detailed information on a wide range of operating parameters and processing status for optimal performance.
  • Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
  • Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches.
  • Secure locking system allows easy push-button installation and exchange of rotors.
  • System saves time when switching between applications.
  • Easy access to rotor chamber offers quick cleaning, a healthier working environment and longer unit life.
  • Biocontainment solution seals with a snap; eliminates screw caps and complicated clips.
  • System has glove-friendly, one-handed open/close capability.
  • System is certified by CAMR™ in Porton Down, UK.
  • Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option:
  • Technology optimizes safety and improves separations.
  • Compact dimensions optimize work area and ergonomic height and curved design ensure easy sample loading and unloading and easy cleaning.
  • System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tubes processing.
  • 5 year limited warranty
Technical Specifications:
Maximum CapacitySwinging bucket rotors: 4 x 400 mL with TX-400 rotor
Fixed angle rotors: 6 x 100 mL with F15 6x100y
Maximum SpeedSwinging bucket rotors: 5,300 rpm with BIOShield 720 rotor
Fixed angle rotors: 15,200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
Maximum RCFSwinging bucket rotors: 5,088 x g with BIOShield 720 rotor
Fixed angle rotor: 25,830 x g with Microliter 30x2
Control SystemMicroprocessor
Refrigeratedyes, -10° to 40°C temperature range
Drive SystemDirect, brushless induction low profile motor
Acceleration/Deceleration ProfilesChoices of 9 acceleration / 10 deceleration rates
MaterialFront, top, sides: PC-ABS plastic painted with 2K PUR-based lacquer
Metal housing: cold rolled steel powder coated
Centrifuge bowl: corrosion-resistant high thermal conductivity (stainless steel 1.4301 cold rolled)
Feet: rubber
Rotor Locking SystemPush-button Auto-Lock
Safety FeaturesSMARTSpin imbalance detection, finger-pinch prevention, crash-proof construction
Number of Compatible Rotors14
DisplayPush button and high contrast LCD interface
Run Timemax9h, 59min; also with continuous and pulse modes
Timercount down only
Program Storageup to 6 run programs
Programmabilityvia 6 direct access buttons
Electrical Requirements120 Volt
Warranty5 Year Limited (2 years standard warranty + 3 additional years on motor)
Technical StandardsEN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15
CertificationsISO 14971, ISO 13485, ISO 9001
Dimensions (WxDxH)17.5 x 26 x 14.3 inches (44.5 x 66 x 36.2 cm) / 33.6 inches (85.5 cm) height open cover
Net Weight134 lbs (61 kg)
IncludesPrinted English user manual, USB stick with 28 languages of user manual, corrosion resistant oil (70009824), power cord, declaration of conformity
Cell culture package includes:
(75003181) TX-400 rotor
(75003655) 400 ml round buckets (set /4) - for TX-400 rotor
(75003656) sealing caps for TX-400 bucket (set /, includes grease)
(75003683) set of 4 adapters 4 x 50 conical
(75003682) set of 4 adapters 9 x 15 ml conical
