Thermo Scientific Megafuge ST4F Plus Floor Centrifuge (75009961), 208-230V

Email a Friend Add to Favorites
SKU
75009961
  • $13,489.40
  • $15,100.00 You Save 10.67%

Description

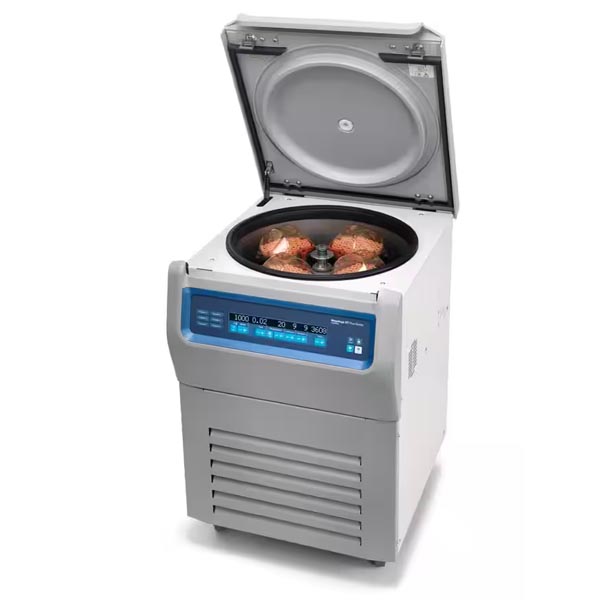

The Thermo Scientific ST4F Plus floor megafuge (75009961) is the base unit only and does not come with a rotor and runs on 208-230 volt power. The Thermo Scientific ST4F plus series of floor standing centrifuges feature ergonomic design, standard high contrast user interface for up to 6 saved programs with simple push-button operation for routine applications. With capacity up to 4 L, including 196x5/7 ml blood tubes and 40x50 ml conical tubes, Auto-Lock for fast rotor exchange and 11 available rotors to choose from. Floor standing unit save bench space.

  • Intuitive controls simplify operation and provide detailed information on a wide range of operating parameters and processing status for optimal performance.
  • Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
  • Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches.
  • Secure locking system allows easy push-button installation and exchange of rotors.
  • System saves time when switching between applications.
  • Easy access to rotor chamber offers quick cleaning, a healthier working environment and longer unit life.
  • Biocontainment solution seals with a snap; eliminates screw caps and complicated clips.
  • System has glove-friendly, one-handed open/close capability.
  • System is certified by CAMR™ in Porton Down, UK.
  • Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option:
  • Technology optimizes safety and improves separations.
  • Compact dimensions optimize work area and ergonomic height and curved design ensure easy sample loading and unloading and easy cleaning.
  • System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tubes processing.
  • Space saving floor model design
  • 5 year limited warranty
Technical Specifications:
Maximum CapacitySwinging bucket rotors: 4 x 1,000 mL with TX-100 rotor
Fixed angle rotors: 6 x 100 mL with F15-6x100 or F10-6x100 rotor
Maximum SpeedSwinging bucket rotors: 5,300 rpm with BIOShield 1000A rotor
Fixed angle rotors: 15,200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
Maximum RCFSwinging bucket rotors: 5,590 x g with BIOShield 1000A rotor
Fixed angle rotor: 25,830 x g with Microliter 30x2
Control SystemMicroprocessor
Refrigeratedno
Drive SystemDirect, brushless induction low profile motor
Acceleration/Deceleration ProfilesChoices of 9 acceleration / 10 deceleration rates
MaterialFront, top, sides: PC-ABS plastic painted with 2K PUR-based lacquer
Metal housing: cold rolled steel powder coated
Centrifuge bowl: corrosion-resistant high thermal conductivity (stainless steel 1.4301 cold rolled)
Feet: rubber
Rotor Locking SystemPush-button Auto-Lock
Safety FeaturesSMARTSpin imbalance detection, finger-pinch prevention, crash-proof construction
Number of Compatible Rotors12
DisplayPush button and high contrast LCD interface
Run Timemax 9h, 59min; also with continuous and pulse modes
Timercount down only
Program Storageup to 6 run programs
Programmabilityvia 6 direct run programs
Electrical Requirements208-230 Volt
Warranty5 Year Limited (2 years standard warranty + 3 additional years on motor)
Technical StandardsEN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15
CertificationsISO 14971, ISO 13485, ISO 9001
Dimensions (WxDxH)22.3 x 27.2 x 32.8 inches (56.6 x 69 x 83.5 cm) / 54.1 inches (135 cm) height open cover
Net Weight335 lbs (152 kg)
IncludesPrinted English user manual, USB stick with 28 languages of user manual, corrosion resistant oil (70009824), power cord, declaration of conformity
