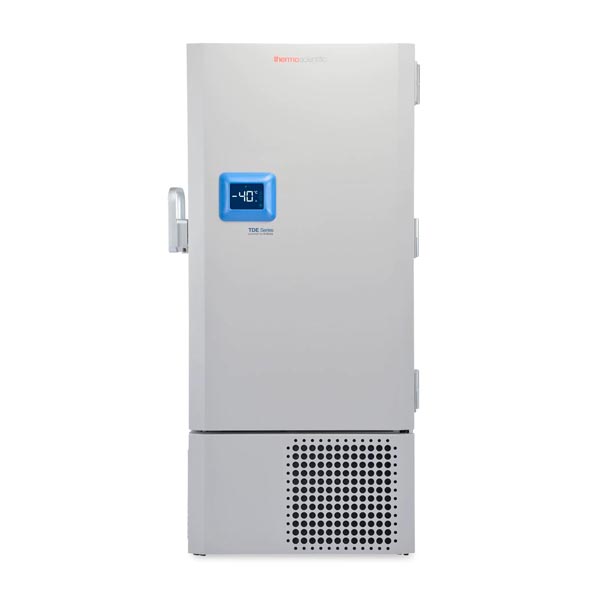

The Thermo Scientific TDE50040FA ultra-low temperature upright freezer has a capacity of 24.1 cubic foot (682 liters), holds 500 cryoboxes and has a temperature range of -10°C to -40°C and runs on 115V power. The TDE Series is a sustainable and reliable solution with ultimate sample security and operational savings for every lab.
- Powered by H-drive's hydrocarbon technology, these systems save up to almost 50% in energy usage and heat rejection over conventional refrigerant ultra-low freezers
- A quiet sound output below 53 dBA, enables the freezer to come out of the hallway and into the lab
- Meets ±5°C validation protocols at -40°C with strong peak variation and steady-state temperature variation
- Natural hydrocarbon refrigerants reduce system operating stresses promoting outstanding reliability and worry-free sample protection

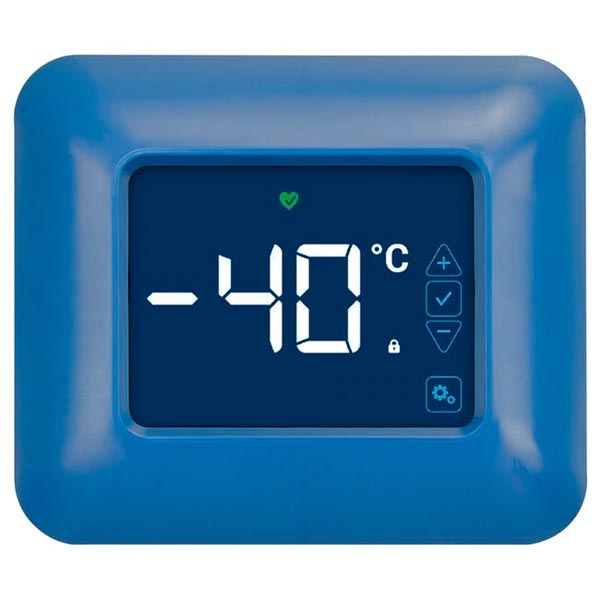

- The H-drive Information Center (HIC) combines easy to read temperature with simple capacitive touch buttons in a 5.6" display
- All models contain four inner doors allowing for easy sample access without exposing greater freezer content to ambient conditions
- Improved customer convenience with new ergonomically designed handle, high contrast eye-level display, and comfortable easy-access shelf locations.
- Compatible with most racking systems including a full range of Thermo Scientific™ racks for boxes, microplates, Thermo Scientific™ Matrix™ and Nunc CryoBank™ tubes
- Security features including alarm settings and padlock-compatible doors
- Natural refrigerants and water-blown foam insulation, making the Series compliant with the U.S. Environmental Protection Agency's Significant New Alternatives Policy (SNAP), the European Union's F-Gas and other sustainability standards
- Lower HVAC costs as a result of less heat emission into the environment
- Manufactured in an award-winning, zero-waste to landfill facility
- 5-year standard warranty
Technical Specifications:Volume / Capacity | 24.1 CU FT (682 liters) / 500 2-inch cryoboxes (50,000 2mL vials) |
---|
Temperature Range | -10°C to -40°C |
---|
Door Style / Shelves | 1 outer, 4 inner / 3 shelves (165 lbs / 75 kg capacity each) |
---|
Display | HIC 5.6 inch 7-segment display with capacitive touch buttons |
---|
Setpoint Security | Yes |
---|
Refrigerant | R290 |
---|
Insulation | Vacuum Insulation Panels (VIP) + Water-Blown Polyurethane Foam (SNAP-compliant) |
---|
Defrost | Manual |
---|
Smart-Vue Compatible | Yes |
---|
Connectivity | Remote Alarm Connections, 4-20mA, RS485, and Dry Contacts |
---|
Electrical / Plug Type | 115V / 60Hz, 12.5/20 amps / NEMA 5-20 |
---|
Interior Dimensions (D x W xH) | 28.3 x 28.8 x 51.2 inches (71.9 x 73 x 130.1 cm) |
---|
Exterior Dimensions (D x W x H) | 38.5 x 34 x 78 inches (97.7 x 86.4 x 198.1 cm) |
---|
Shipping Weight | 574 lbs (260 kg) |
---|
Shipping Weight | 668 lbs (304 kg) |
---|
Certifications/Compliance | cULus |
---|
