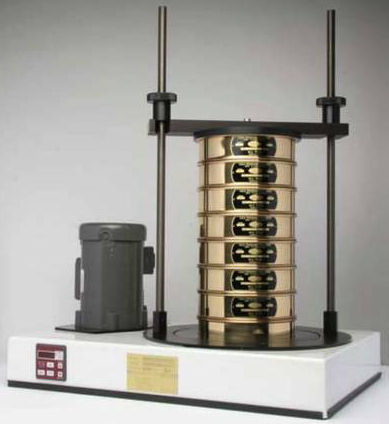

W.S. TYLER® RX-812 Coarse Sieve Shaker

  • Model #: RX-812
  • Your Price: $1,049.40
    List Price: $1,237.25

Designed to be used in coarse testing applications, the affordable RX-812 Coarse Sieve Shaker has unique capability of using both 8" diameter and 12" diameter test sieves, simply by using the quick-change adapters provided. The RX-812 has a quet operation and utilizes an effective "action" that gives consistent, accurate results.

  • For test sieve analysis ranging in particle size from 4" opening through 150 micron (USA No. 100)
  • Equipped with adapters to process both 8" and 12" diameter test sieves
  • Features digital 99-minute timer/clock, accurate to 0.1 second
  • Quiet operation, consistent, accurate results
  • Not recomended for analysis with particles 150 micron (100 mesh) and smaller
Technical Specifications:
Capacity Full Height - 8" - 6 Sieves / 12" - 4 Sieves
Itermediate Height - 12" - 6 Sieves
Half Height - 8" - 13 Sieves / 12" - 8 Sieves
Oscillations per Minute 280 (60 Hz)
231 (50 Hz)
Unit Dimensions (W x D x H) 23 x 15 x 13" / 59 x 38 x 33 cm
Shipping Dimensions (W x D x H) 25 x 19 x 15" / 64 x 49 x 38 cm
Unit Weight 43 lbs / 25 kg
Shipping Weight 80 lbs / 28 kg
Power 110 v / 60 Hz
