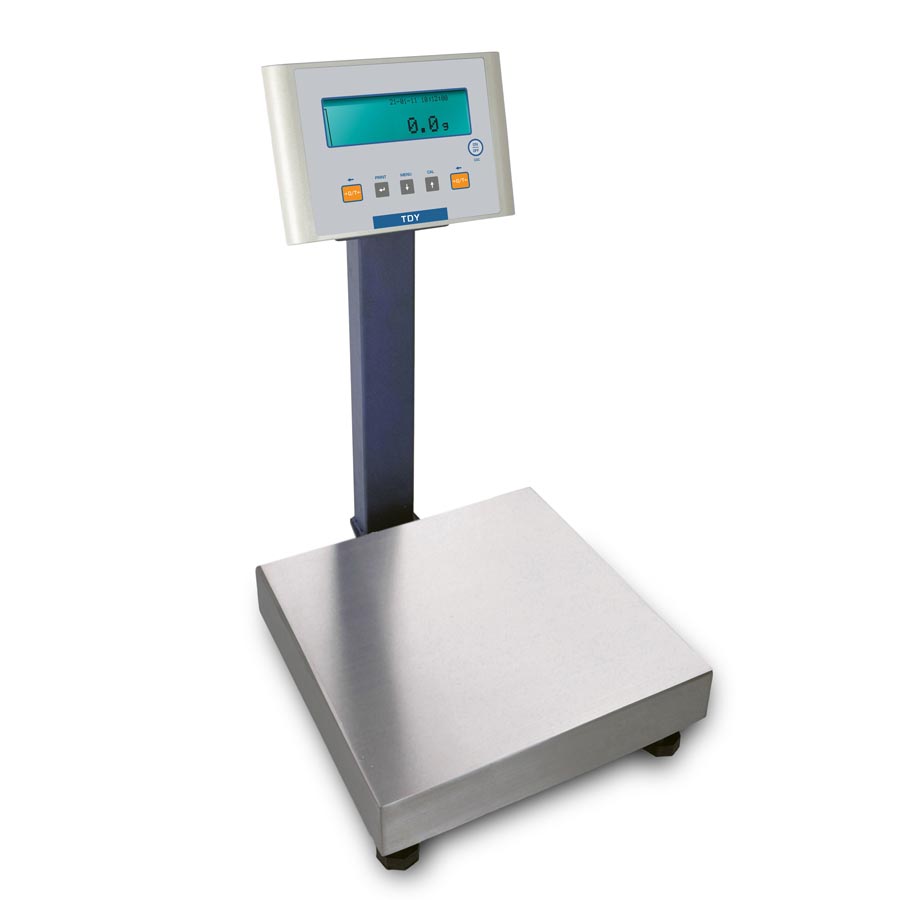

The Veritas TDY-M 8200 precision bench scale has a capacity of 8,200 grams with a readability of 1 grams and a 11 x 11 inch pan size. A new series of high precision platform scales from Veritas with different platform dimensions to match all user requiments. Perfect as well for laboratory applications thanks also to the GLP settings and also suitable for use on the bench. Three series of scales with smallest plate size of 6 x 5.5 inches with resolution of 0.01 gram up to the largest platform size of 11.8 x 15.7 inches with a resolution 1 gram.
| Capacity | 8,200 g |
|---|---|
| Readability | 1 g |
| Pan Size | 11 x 11 inches (280 x 280 mm) |
| Repeatability (St. Dev.) | 0.1 g |
| Linearity | ±1 g |
| Calibration | External |
| Typical Stabilization Time | ≤2 seconds |
| Weighing Units | Gram, Milligram, Carat, Ounce, Pound, Pennyweight, Troy Ounce, Grain, Hong Kong Tael, Singapore Tael, Taiwan Tael, Momme |
| Display | Dot matrix graphical with backlight |
| Operating Languages | English, Italian, Portugues, Deutsch, Francais, Espanol |
| Interface | RS232 |
| Column Height | 14.2 inches (360 mm) |
| Working Environment | +5° to 35°C, 20 to 80% Relative Humidity (non condensing) |
| Sensitivity Temperature Drift | (+10 to +30°C); ±6ppm/°C |
| Power Supply | 110-230Vac, 50/60 Hz, output 9V 1A multi plug |
